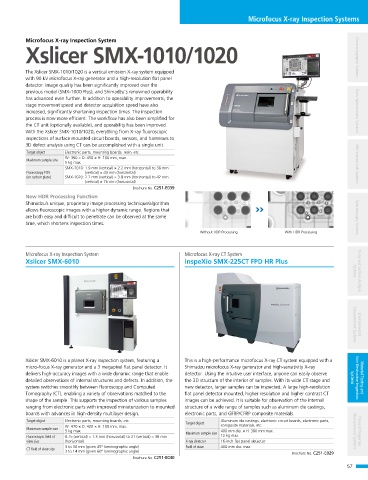

P. 57

Microfocus X-ray Inspection Systems



          Microfocus X-ray Inspection System
          Xslicer SMX-1010/1020                                                                                        Chromatography Systems



          The Xslicer SMX-1010/1020 is a vertical emission X-ray system equipped
          with 90 kV microfocus X-ray generator and a high-resolution flat panel
          detector. Image quality has been significantly improved over the
          previous model (SMX-1000 Plus), and Shimadzu’s renowned operability
          has advanced even further. In addition to operability improvements, the
          stage movement speed and detector acquisition speed have also
          increased, significantly shortening inspection times. The inspection                                         Mass Spectrometry Systems
          process is now more efficient. The workflow has also been simplified for
          the CT unit (optionally available), and operability has been improved.
          With the Xslicer SMX-1010/1020, everything from X-ray fluoroscopic
          inspections of surface mounted circuit boards, sensors, and harnesses to
          3D defect analysis using CT can be accomplished with a single unit.
          Target object  Electronic parts, mounting boards, resin, etc.
                       W: 350 × D: 450 × H: 100 mm, max.
          Maximum sample size
                       5 kg max.                                                                                       Life Science Lab Systems
                       SMX-1010:  1.9 mm (vertical) × 2.2 mm (horizontal) to 38 mm
          Fluoroscopy FOV    (vertical) × 43 mm (horizontal)
          (on carbon plate)  SMX-1020:  2.2 mm (vertical) × 3.8 mm (horizontal) to 42 mm
                             (vertical) × 76 mm (horizontal)
                                             Brochure No. C251-E039
          New HDR Processing Function
          Shimadzu’s unique, proprietary image processing technique/algorithm
          allows fluoroscopic images with a higher dynamic range. Regions that
          are both easy and difficult to penetrate can be observed at the same                                         Spectroscopy Systems
          time, which shortens inspection times.
                                                                   Without HDR Processing      With HDR Processing


          Microfocus X-ray Inspection System                  Microfocus X-ray CT System
          Xslicer SMX-6010                                    inspeXio SMX-225CT FPD HR Plus                          Systems  X-ray and Surface   Analysis



















          Xslicer SMX-6010 is a planer X-ray inspection system, featuring a   This is a high-performance microfocus X-ray CT system equipped with a   Measurement Systems  Environmental
          micro-focus X-ray generator and a 3 megapixel flat panel detector. It   Shimadzu microfocus X-ray generator and high-sensitivity X-ray
          delivers high-accuracy images with a wide dynamic range that enable   detector. Using the intuitive user interface, anyone can easily observe
          detailed observations of internal structures and defects. In addition, the   the 3D structure of the interior of samples. With its wide CT stage and   Systems  Non-Destructive Inspection     Material Testing and
          system switches smoothly between fluoroscopy and Computed   new detector, larger samples can be inspected. A large high-resolution
          Tomography (CT), enabling a variety of observations matched to the   flat panel detector mounted, higher resolution and higher contrast CT
          shape of the sample. This supports the inspection of various samples   images can be achieved. It is suitable for observation of the internal
          ranging from electronic parts with improved miniaturization to mounted   structure of a wide range of samples such as aluminum die castings,
          boards with advances in high-density multilayer design.  electronic parts, and GFRP/CFRP composite materials.
          Target object  Electronic parts, mounting boards, etc.  Target object  Aluminum die castings, electronic circuit boards, electronic parts,
                       W: 470 × D: 420 × H: 100 mm, max.                  composite materials, etc.
          Maximum sample size
                       5 kg max.                               Maximum sample size  400 mm dia. × H: 300 mm max.      Measurement Systems  Physical Properties
          Fluoroscopic field of   0.75 (vertical) × 1.3 mm (horizontal) to 21 (vertical) × 38 mm   12 kg max.
          view size    (horizontal)                            X-ray detector  16-inch flat panel detector
                       3 to 30 mm (given 45° laminographic angle)  Field of view  400 mm dia. max.
          CT field of view size  3 to 14 mm (given 60° laminographic angle)                       Brochure No. C251-E029
                                             Brochure No. C251-E040
