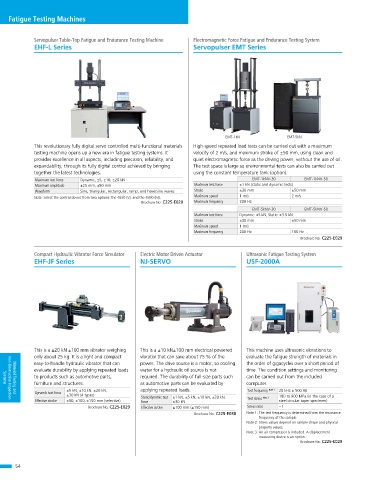

Page 54 - 2023 Shimadzu Analytical and Measuring Instruments
P. 54

Fatigue Testing Machines



            Servopulser Table-Top Fatigue and Endurance Testing Machine  Electromagnetic Force Fatigue and Endurance Testing System
            EHF-L Series                                         Servopulser EMT Series

















                                                                            EMT-1kN             EMT-5kN
            This revolutionary fully digital servo controlled multi-functional materials   High-speed repeated load tests can be carried out with a maximum
            testing machine opens up a new era in fatigue testing systems. It   velocity of 2 m/s, and maximum stroke of ±50 mm, using clean and
            provides excellence in all aspects, including precision, reliability, and   quiet electromagnetic force as the driving power, without the use of oil.
            expandability, through its fully digital control achieved by bringing   The test space is large so environmental tests can also be carried out
            together the latest technologies.                    using the constant temperature tank (option).
             Maximum test force  Dynamic, ±5, ±10, ±20 kN                            EMT-1kNV-30      EMT-1kNV-50
             Maximum amplitude  ±25 mm, ±50 mm                   Maximum test force  ±1 kN (static and dynamic tests)
             Waveform       Sine, triangular, rectangular, ramp, and haversine waves  Stroke  ±30 mm  ±50 mm
            Note:  Select the control device from two options: the 4830 (V), and the 4890 (M).  Maximum speed  1 m/s  2 m/s
                                                Brochure No. C225-E029  Maximum frequency  200 Hz
                                                                                     EMT-5kNV-30      EMT-5kNV-50
                                                                 Maximum test force  Dynamic: ±5 kN, Static: ±3.5 kN
                                                                 Stroke         ±30 mm            ±50 mm
                                                                 Maximum speed  1 m/s
                                                                 Maximum frequency  200 Hz        100 Hz
                                                                                                     Brochure No. C225-E029

            Compact Hydraulic Vibrator Force Simulator  Electric Motor Driven Actuator  Ultrasonic Fatigue Testing System
            EHF-JF Series                      NJ-SERVO                            USF-2000A

















            This is a ±20 kN ±100 mm vibrator weighing   This is a ±10 kN±100 mm electrical powered   This machine uses ultrasonic vibrations to
            only about 25 kg. It is a light and compact   vibrator that can save about 75 % of the   evaluate the fatigue strength of materials in
            easy-to-handle hydraulic vibrator that can   power. The drive source is a motor, so cooling   the order of gigacycles over a short period of
            evaluate durability by applying repeated loads   water for a hydraulic oil source is not   time. The condition settings and monitoring
            to products such as automotive parts,   required. The durability of full-size parts such   can be carried out from the included
            furniture and structures.          as automotive parts can be evaluated by   computer.
  Systems
                       ±5 kN, ±10 kN, ±20 kN,   applying repeated loads.           Test frequency  Note 1  20 kHz ± 500 Hz
             Dynamic test force  ±30 kN (4 types)                                            180 to 900 MPa (in the case of a
     Material Testing and
             Effective stroke  ±50, ±100, ±150 mm (selective)  Static/dynamic test  ±1 kN, ±5 kN, ±10 kN, ±20 kN,   Test stress  Note 2  steel circular taper specimen)
                                                force
                                                          ±30 kN
    Non-Destructive Inspection
                              Brochure No. C225-E029  Effective stroke  ±100 mm (±150 mm)  Stress ratio  −1
                                                                 Brochure No. C225-E030  Note 1:  The test frequency is determined from the resonance
                                                                                       frequency of the sample.
                                                                                   Note 2:  Stress values depend on sample shape and physical
                                                                                       property values.
                                                                                   Note 3:  An air compressor is included. A displacement
                                                                                       measuring device is an option.
                                                                                                     Brochure No. C225-E029
