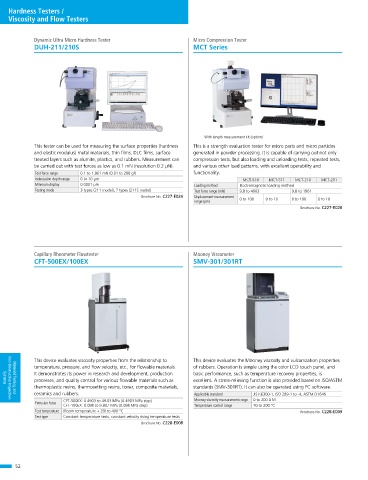

P. 52

Hardness Testers /
    Viscosity and Flow Testers



            Dynamic Ultra Micro Hardness Tester                  Micro Compression Tester
            DUH-211/210S                                         MCT Series

















                                                                     With length measurement kit (option)
            This tester can be used for measuring the surface properties (hardness   This is a strength evaluation tester for micro parts and micro particles
            and elastic modulus) metal materials, thin films, DLC films, surface   generated in powder processing. It is capable of carrying out not only
            treated layers such as alumite, plastics, and rubbers. Measurement can   compression tests, but also loading and unloading tests, repeated tests,
            be carried out with test forces as low as 0.1 mN (resolution 0.2 µN).  and various other load patterns, with excellent operability and
             Test force range  0.1 to 1,961 mN (0.01 to 200 gf)  functionality.
             Indentation depth range  0 to 10 µm                                 MCT-510  MCT-511  MCT-210  MCT-211
             Minimum display  0.0001 µm                          Loading method  Electromagnetic loading method
             Testing mode   3 types (211 model), 7 types (211S model)  Test force range (mN)  9.8 to 4903  9.8 to 1961
                                                Brochure No. C227-E024  Displacement measurement   0 to 100  0 to 10  0 to 100  0 to 10
                                                                 range (µm)
                                                                                                     Brochure No. C227-E020








            Capillary Rheometer Flowtester                       Mooney Viscometer
            CFT-500EX/100EX                                      SMV-301/301RT



















            This device evaluates viscosity properties from the relationship to   This device evaluates the Mooney viscosity and vulcanization properties
            temperature, pressure, and flow velocity, etc., for flowable materials.  of rubbers. Operation is simple using the color LCD touch panel, and
            It demonstrates its power in research and development, production   basic performance, such as temperature recovery properties, is
            processes, and quality control for various flowable materials such as   excellent. A stress-relieving function is also provided based on ISO/ASTM
  Systems
            thermoplastic resins, thermosetting resins, toner, composite materials,   standards (SMV-301RT). It can also be operated using PC software.
            ceramics and rubbers.                                Applicable standard  JIS K6300-1, ISO 289-1 to -4, ASTM D1646
     Material Testing and
                      CFT-500EX: 0.4903 to 49.03 MPa (0.4903 MPa step)  Mooney viscosity measurement range  0 to 200.0 M
    Non-Destructive Inspection
             Extrusion force  CFT-100EX: 0.098 to 9.807 MPa (0.098 MPa step)  Temperature control range  70 to 200 °C
             Test temperature  (Room temperature + 20) to 400 °C                                     Brochure No. C228-E009
             Test type  Constant temperature tests, constant velocity rising temperature tests
                                                Brochure No. C228-E008
