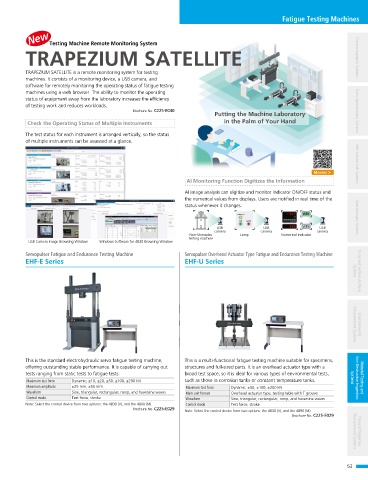

Fatigue Testing Machines

           New   Testing Machine Remote Monitoring System


          TRAPEZIUM SATELLITE                                                                                          Chromatography Systems


          TRAPEZIUM SATELLITE is a remote monitoring system for testing
          machines. It consists of a monitoring device, a USB camera, and
          software for remotely monitoring the operating status of fatigue testing
          machines using a web browser. The ability to monitor the operating
          status of equipment away from the laboratory increases the efficiency
          of testing work and reduces workloads.
                                             Brochure No. C225-E040                                                    Mass Spectrometry Systems
                                                                        Putting the Machine Laboratory

          Check the Operating Status of Multiple Instruments               in the Palm of Your Hand
          The test status for each instrument is arranged vertically, so the status
          of multiple instruments can be assessed at a glance.




                                                                                                         Movies >      Life Science Lab Systems
                                                               AI Monitoring Function Digitizes the Information
                                                              AI image analysis can digitize and monitor indicator ON/OFF status and
                                                              the numerical values from displays. Users are notified in real time of the
                                                              status whenever it changes.



                                                                         USB            USB                USB         Spectroscopy Systems
                                                                        camera         camera             camera
                                                                Non-Shimadzu     Lamp         Numerical indicator
                                                               testing machine
          USB Camera Image Browsing Window  Windows Software for 4830 Browsing Window
          Servopulser Fatigue and Endurance Testing Machine   Servopulser Overhead Actuator Type Fatigue and Endurance Testing Machine
          EHF-E Series                                        EHF-U Series                                            Systems  X-ray and Surface   Analysis



















          This is the standard electrohydraulic servo fatigue testing machine,   This is a multi-functional fatigue testing machine suitable for specimens,   Measurement Systems  Environmental
          offering outstanding stable performance. It is capable of carrying out   structures and full-sized parts. It is an overhead actuator type with a
          tests ranging from static tests to fatigue tests.   broad test space, so it is ideal for various types of environmental tests,
          Maximum test force  Dynamic, ±10, ±20, ±50, ±100, ±200 kN  such as those in corrosion tanks or constant temperature tanks.  Systems  Non-Destructive Inspection     Material Testing and
          Maximum amplitude  ±25 mm, ±50 mm                    Maximum test force  Dynamic, ±50, ±100, ±200 kN
          Waveform       Sine, triangular, rectangular, ramp, and haversine waves  Main unit format  Overhead actuator type, testing table with T groove
          Control mode   Test force, stroke                    Waveform       Sine, triangular, rectangular, ramp, and haversine waves
          Note:  Select the control device from two options: the 4830 (V), and the 4890 (M).  Control mode  Test force, stroke
                                             Brochure No. C225-E029
                                                              Note:  Select the control device from two options: the 4830 (V), and the 4890 (M).
                                                                                                  Brochure No. C225-E029  Measurement Systems  Physical Properties
