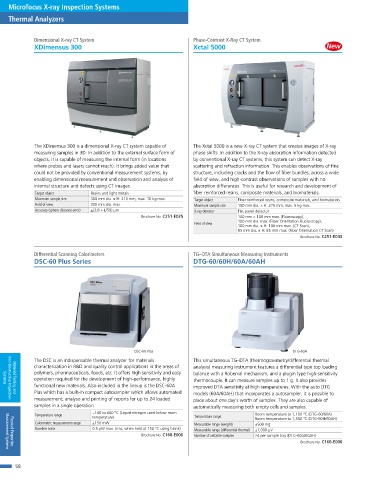

Page 58 - 2023 Shimadzu Analytical and Measuring Instruments

Microfocus X-ray Inspection Systems
Thermal Analyzers

Dimensional X-ray CT System Phase-Contrast X-Ray CT System
XDimensus 300 Xctal 5000 New

The XDimensus 300 is a dimensional X-ray CT system capable of The Xctal 5000 is a new X-ray CT system that creates images of X-ray
measuring samples in 3D. In addition to the external surface form of phase shifts. In addition to the X-ray absorption information detected
objects, it is capable of measuring the internal form (in locations by conventional X-ray CT systems, this system can detect X-ray
where probes and lasers cannot reach). It brings added value that scattering and refraction information. This enables observations of fine
could not be provided by conventional measurement systems, by structure, including cracks and the flow of fiber bundles, across a wide
enabling dimensional measurement and observation and analysis of field of view, and high-contrast observations of samples with no
internal structure and defects using CT images. absorption differences. This is useful for research and development of
Target object Resins and light metals fiber reinforced resins, composite materials, and biomaterials.
Maximum sample size 300 mm dia. × H: 210 mm, max. 10 kg max. Target object Fiber reinforced resins, composite materials, and biomaterials
Field of view 300 mm dia. max. Maximum sample size 150 mm dia. × H: 275 mm, max. 5 kg max.
Accuracy (sphere distance error) ±(3.8 + L/50) μm X-ray detector Flat panel detector
Brochure No. C251-E035 100 mm × 100 mm max. (Fluoroscopy),
100 mm dia. max. (Fiber Orientation Fluoroscopy),
Field of view
100 mm dia. × H: 100 mm max. (CT Scan),
85 mm dia. × H: 85 mm max. (Fiber Orientation CT Scan)
Brochure No. C251-E043

Differential Scanning Calorimeters TG–DTA Simultaneous Measuring Instruments
DSC-60 Plus Series DTG-60/60H/60A/60AH

DSC-60 Plus DTG-60A
The DSC is an indispensable thermal analyzer for materials This simultaneous TG–DTA (thermogravimetry/differential thermal
characterization in R&D and quality control applications in the areas of analysis) measuring instrument features a differential type top loading
polymers, pharmaceuticals, foods, etc. It offers high sensitivity and easy balance with a Roberval mechanism, and a plugin type high-sensitivity
operation required for the development of high-performance, highly thermocouple. It can measure samples up to 1 g. It also provides
functional new materials. Also included in the lineup is the DSC-60A improved DTA sensitivity at high temperatures. With the auto DTG
Systems
Plus which has a built-in compact autosampler which allows automated models (60A/60AH) that incorporates a autosampler, it is possible to
Material Testing and
measurement, analysis and printing of reports for up to 24 loaded place about one day's worth of samples. They are also capable of
Non-Destructive Inspection
samples in a single operation. automatically measuring both empty cells and samples.
Temperature range −140 to 600 °C (Liquid nitrogen used below room Room temperature to 1,100 °C (DTG-60/60A)
temperature) Temperature range Room temperature to 1,500 °C (DTG-60H/60AH)
Calorimetric measurement range ±150 mW Measurable range (weight) ±500 mg
Baseline noise 0.5 μW max. (rms, when held at 150 °C using blank) Measurable range (differential thermal) ±1,000 μV
Brochure No. C160-E006 Number of settable samples 24 per sample tray (DTG-60A/60AH)
Brochure No. C160-E006
Physical Properties
Measurement Systems
