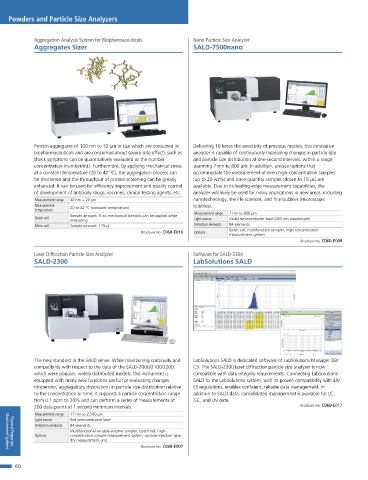

Page 60 - 2023 Shimadzu Analytical and Measuring Instruments

Powders and Particle Size Analyzers

Aggregation Analysis System for Biopharmaceuticals Nano Particle Size Analyzer
Aggregates Sizer SALD-7500nano

Protein aggregates of 100 nm to 10 μm in size which are contained in Delivering 10 times the sensitivity of previous models, this innovative
biopharmaceuticals and are concerned about severe side effects such as analyzer is capable of continuously measuring changes in particle size
shock symptoms can be quantitatively evaluated as the number and particle size distribution at one-second intervals, within a range
concentration (number/mL). Furthermore, by applying mechanical stress spanning 7 nm to 800 µm. In addition, unique options that
at a constant temperature (20 to 42 °C), the aggregation process can accommodate the measurement of even high-concentration samples
be shortened and the throughput of protein screening can be greatly (up to 20 wt%) and trace quantity samples (down to 15 µL) are
enhanced. It can be used for efficiency improvement and quality control available. Due to its leading-edge measurement capabilities, the
of development of antibody drugs, vaccines, clinical testing agents, etc. analyzer will likely be used for many applications in new areas, including
Measurement range 40 nm + 20 μm nanotechnology, the life sciences, and fine bubbles (microscopic
Measurement bubbles).
temperature 20 to 42 °C (constant temperature)
Sample amount: 5 mL mechanical stimulus can be applied while Measurement range 7 nm to 800 µm
Batch cell Light source Violet semiconductor laser (405 nm wavelength)
measuring
Micro cell Sample amount: 125 µL Detection elements 84 elements
Brochure No. C060-E010 Options Batch cell, multifunction sampler, high-concentration
measurement system
Brochure No. C060-E009
Laser Diffraction Particle Size Analyzer Software for SALD-2300
SALD-2300 LabSolutions SALD

The new standard in the SALD series. While maintaining continuity and LabSolutions SALD is dedicated software of LabSolutions Manager DB/
compatibility with respect to the data of the SALD-2000/2100/2200, CS. The SALD-2300 laser diffraction particle size analyzer is now
which were popular, widely distributed models, this instrument is compatible with data integrity requirements. Connecting LabSolutions
equipped with many new functions useful for evaluating changes SALD to the LabSolutions system, with its proven compatibility with ER/
(dispersion, aggregation, dissolution) in particle size distribution relative ES regulations, enables confident, reliable data management. In
to the concentration or time. It supports a particle concentration range addition to SALD data, consolidated management is available for LC,
from 0.1 ppm to 20% and can perform a series of measurements of GC, and UV data.
200 data points at 1 second minimum intervals. Brochure No. C060-E017
Measurement range 17 nm to 2,500 µm
Light source Red semiconductor laser
Detection elements 84 elements
Multifunctional variable-volume sampler, batch cell, high-
Options concentration sample measurement system, cyclone injection type
dry measurement unit
Brochure No. C060-E007
Physical Properties
Measurement Systems
60
