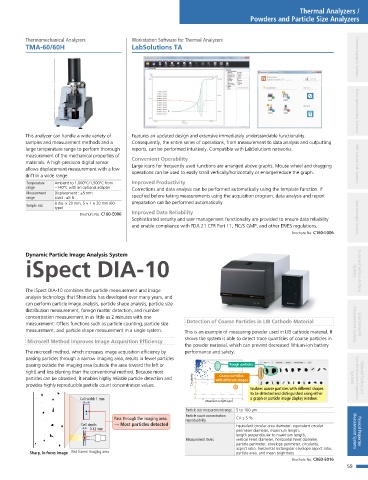

Page 59 - 2023 Shimadzu Analytical and Measuring Instruments

Thermal Analyzers /
Powders and Particle Size Analyzers

Thermomechanical Analyzers Workstation Software for Thermal Analyzers
TMA-60/60H LabSolutions TA Chromatography Systems

This analyzer can handle a wide variety of Features an updated design and extensive immediately understandable functionality. Mass Spectrometry Systems
samples and measurement methods and a Consequently, the entire series of operations, from measurement to data analysis and outputting
large temperature range to perform thorough reports, can be performed intuitively. Compatible with LabSolutions networks.
measurement of the mechanical properties of Convenient Operability
materials. A high- precision digital sensor Large icons for frequently used functions are arranged above graphs. Mouse wheel and dragging Life Science Lab Systems
allows displacement measurement with a low operations can be used to easily scroll vertically/horizontally or enlarge/reduce the graph.
drift in a wide range.
Temperature Ambient to 1,000°C/1,500°C from Improved Productivity
range −140°C with an optional adapter Corrections and data analysis can be performed automatically using the template function. If
Measurement Displacement : ±5 mm
range Load : ±5 N specified before taking measurements using the acquisition program, data analysis and report
8 dia. × 20 mm, 5 × 1 × 20 mm (60 preparation can be performed automatically.
Sample size
type)
Brochure No. C160-E006 Improved Data Reliability
Sophisticated security and user management functionality are provided to ensure data reliability Spectroscopy Systems
and enable compliance with FDA 21 CFR Part 11, PIC/S GMP, and other ER/ES regulations.
Brochure No. C160-E006

Dynamic Particle Image Analysis System
iSpect DIA-10 Systems X-ray and Surface Analysis

The iSpect DIA-10 combines the particle measurement and image
analysis technology that Shimadzu has developed over many years, and
can perform particle image analysis, particle shape analysis, particle size
distribution measurement, foreign matter detection, and number
concentration measurement in as little as 2 minutes with one
measurement. Offers functions such as particle counting, particle size Detection of Coarse Particles in LIB Cathode Material Measurement Systems Environmental
measurement, and particle shape measurement in a single system. This is an example of measuring powder used in LIB cathode material. It
shows the system is able to detect trace quantities of coarse particles in
Microcell Method Improves Image Acquisition Efficiency
the powder material, which can prevent decreased lithium-ion battery
The microcell method, which increases image acquisition efficiency by performance and safety.
passing particles through a narrow imaging area, results in fewer particles
passing outside the imaging area (outside the area toward the left or Rough particles
right) and less blurring than the conventional method. Because most
Coarse particles
particles can be observed, it enables highly reliable particle detection and Circularity with different shapes Systems Non-Destructive Inspection Material Testing and
provides highly reproducible particle count concentration values.
Enables coarse particles with different shapes
to be detected and distinguished using either
Cell width 1 mm a graph or particle image display window.
Maximum Length (µm)
Particle size measurement range 5 to 100 µm
Particle count concentration
Pass through the imaging area. reproducibility CV ≤ 5 %
Cell depth → Most particles detected Equivalent circular area diameter, equivalent circular
0.12 mm perimeter diameter, maximum length, Measurement Systems Physical Properties
length perpendicular to maximum length,
Measurement items vertical Feret diameter, horizontal Feret diameter,
particle perimeter, envelope perimeter, circularity,
aspect ratio, horizontal rectangular envelope aspect ratio,
Sharp, in-focus image Red frame: Imaging area particle area, and mean brightness
Brochure No. C060-E016
59
