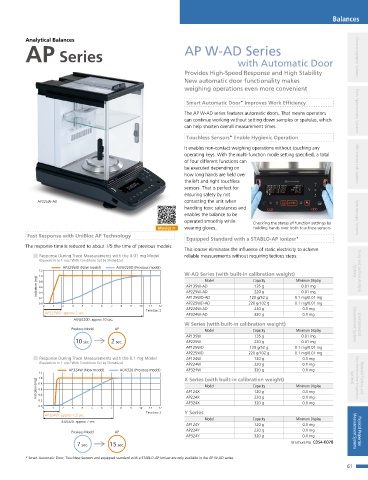

Page 61 - 2023 Shimadzu Analytical and Measuring Instruments

Balances

Analytical Balances
AP Series AP W-AD Series Chromatography Systems
with Automatic Door
Provides High-Speed Response and High Stability
New automatic door functionality makes
weighing operations even more convenient

Smart Automatic Door* Improves Work Efficiency
The AP W-AD series features automatic doors. That means operators Mass Spectrometry Systems
can continue working without setting down samples or spatulas, which
can help shorten overall measurement times.
Touchless Sensors* Enable Hygienic Operation
It enables non-contact weighing operations without touching any
operating keys. With the multi-function mode setting specified, a total
of four different functions can
be executed depending on Life Science Lab Systems
how long hands are held over
the left and right touchless
sensors. That is perfect for
ensuring safety by not
AP225W-AD contacting the unit when
handling toxic substances and
enables the balance to be
operated smoothly while Checking the status of function settings by Spectroscopy Systems
Movies > wearing gloves. holding hands over both touchless sensors
Fast Response with UniBloc AP Technology
Equipped Standard with a STABLO-AP Ionizer*
The response time is reduced to about 1/5 the time of previous models.
This ionizer eliminates the influence of static electricity to achieve
Response During Trace Measurements with the 0.01 mg Model reliable measurements without requiring tedious steps.
(Equivalent to 1 mg / With Conditions Set by Shimadzu)
AP225WD (New model) AUW220D (Previous model)
1.2 W-AD Series (with built-in calibration weight) Systems X-ray and Surface Analysis
Indication [mg] 1.0 AP135W-AD Capacity Minimum Display
Model
0.8
0.01 mg
135 g
0.6
AP225W-AD
220 g
0.01 mg
0.4
0.2 AP125WD-AD 120 g/52 g 0.1 mg/0.01 mg
0.0 AP225WD-AD 220 g/102 g 0.1 mg/0.01 mg
0 1 2 3 4 5 6 7 8 9 10 11 12
Time [sec.] AP224W-AD 220 g 0.1 mg
AP225WD: approx 2 sec. AP324W-AD 320 g 0.1 mg
AUW220D: approx 10 sec.
W Series (with built-in calibration weight) Measurement Systems Environmental
Previous Model AP Model Capacity Minimum Display
AP135W 135 g 0.01 mg
10 sec. 2 sec. AP225W 220 g 0.01 mg
AP125WD 120 g/52 g 0.1 mg/0.01 mg
AP225WD 220 g/102 g 0.1 mg/0.01 mg
Response During Trace Measurements with the 0.1 mg Model AP124W 120 g 0.1 mg
(Equivalent to 1 mg / With Conditions Set by Shimadzu) AP224W 220 g 0.1 mg
AP324W (New model) AUX320 (Previous model) AP324W 320 g 0.1 mg
1.2 X Series (with built-in calibration weight) Systems Non-Destructive Inspection Material Testing and
Indication [mg] 1.0 AP124X Model Capacity Minimum Display
0.8
0.6
0.1 mg
120 g
0.4
0.2 AP224X 220 g 0.1 mg
AP324X 320 g 0.1 mg
0.0 0 1 2 3 4 5 6 7 8 9 10 11 12
Time [sec.] Y Series
AP324W: approx 1.5 sec.
Model Capacity Minimum Display
AUX320: approx 7 sec.
AP124Y 120 g 0.1 mg
Previous Model AP AP224Y 220 g 0.1 mg Measurement Systems Physical Properties
AP324Y 320 g 0.1 mg
Brochure No. C054-E078
7 sec. 1.5 sec.
* Smart Automatic Door, Touchless Sensors and equipped standard with a STABLO-AP Ionizer are only available in the AP W-AD series.
61
