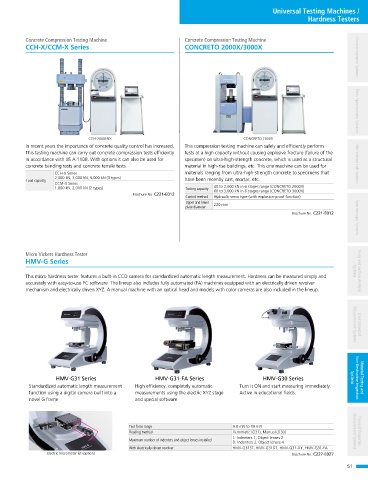

P. 51

Universal Testing Machines /
                                                                                                       Hardness Testers



          Concrete Compression Testing Machine                Concrete Compression Testing Machine
          CCH-X/CCM-X Series                                  CONCRETO 2000X/3000X                                     Chromatography Systems

















                              CCH-2000kNX                                         CONCRETO 2000X                       Mass Spectrometry Systems
          In recent years the importance of concrete quality control has increased.   This compression testing machine can safely and efficiently perform
          This testing machine can carry out concrete compression tests efficiently   tests at a high capacity without causing explosive fracture (failure of the
          in accordance with JIS A 1108. With options it can also be used for   specimen) on ultra-high-strength concrete, which is used as a structural
          concrete bending tests and concrete tensile tests.  material in high-rise buildings, etc. This one machine can be used for   Life Science Lab Systems
                   CCH-X Series                               materials ranging from ultra-high-strength concrete to specimens that
                   2,000 kN, 3,000 kN, 5,000 kN (3 types)
          Load capacity                                       have been recently cast, mortar, etc.
                   CCM-X Series
                   1,000 kN, 2,000 kN (2 types)                Testing capacity  40 to 2,000 kN in 6 stages range (CONCRETO 2000X)
                                             Brochure No. C221-E012     60 to 3,000 kN in 6 stages range (CONCRETO 3000X)
                                                               Control method  Hydraulic servo type (with explosion-proof function)
                                                               Upper and lower   220 mm
                                                               plate diameter
                                                                                                  Brochure No. C221-E012  Spectroscopy Systems






          Micro Vickers Hardness Tester
          HMV-G Series

          This micro hardness tester features a built-in CCD camera for standardized automatic length measurement. Hardness can be measured simply and   Systems  X-ray and Surface   Analysis
          accurately with easy-to-use PC software. The lineup also includes fully automated (FA) machines equipped with an electrically driven revolver
          mechanism and electrically driven XYZ. A manual machine with an optical head and models with color cameras are also included in the lineup.  Measurement Systems  Environmental

















                    HMV-G31 Series                  HMV-G31-FA Series                   HMV-G30 Series               Systems  Non-Destructive Inspection     Material Testing and
           Standardized automatic length measurement   High efficiency, completely automatic   Turn it ON and start measuring immediately.
           function using a digital camera built into a   measurements using the electric XYZ stage   Active in educational fields.
           novel G frame                      and special software




                                            Test force range                  9.8 mN to 19.6 N
                                            Reading method                    Automatic (G31), Manual (G30)           Measurement Systems  Physical Properties
                                                                              S: Indenters 1, Object lenses 2
                                            Maximum number of indenters and object lenses installed  D: Indenters 2, Object lenses 4
                                            With electrically driven revolver  HMV-G31ST, HMV-G31DT, HMV-G31-XY, HMV-G31-FA
                 Electric micrometer kit (option)                                                 Brochure No. C227-E027
