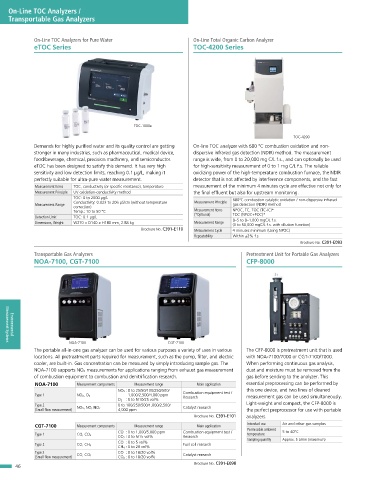

On-Line TOC Analyzers /
    Transportable Gas Analyzers



            On-Line TOC Analyzers for Pure Water                 On-Line Total Organic Carbon Analyzer
            eTOC Series                                          TOC-4200 Series















                                             TOC-1000e
                                                                                                  TOC-4200
            Demands for highly purified water and its quality control are getting   On-line TOC analyzer with 680 °C combustion oxidation and non-
            stronger in many industries, such as pharmaceutical, medical device,   dispersive infrared gas detection (NDIR) method. The measurement
            food/beverage, chemical, precision machinery, and semiconductor.   range is wide, from 0 to 20,000 mg C/L f.s., and can optionally be used
            eTOC has been designed to satisfy this demand. It has very high   for high-sensitivity measurement of 0 to 1 mg C/L f.s. The reliable
            sensitivity and low detection limits, reaching 0.1 µg/L, making it   oxidizing power of the high-temperature combustion furnace, the NDIR
            perfectly suitable for ultra-pure water measurement.  detector that is not affected by interference components, and the fast
             Measurement Items  TOC, conductivity (or specific resistance), temperature  measurement of the minimum 4 minutes cycle are effective not only for
             Measurement Principle  UV oxidation-conductivity method  the final effluent but also for upstream monitoring.
                         TOC: 0 to 2000 μg/L                                  680°C combustion catalytic oxidation / non-dispersive infrared
                         Conductivity: 0.023 to 206 μS/cm (without temperature   Measurement Principle
             Measurement Range                                                gas detection (NDIR) method
                         correction)
                         Temp.: 10 to 50 °C                      Measurement Items  NPOC, TC, TOC (TC-IC)*
             Detection Limit  TOC: 0.1 μg/L                      (*Optional)  TOC (NPOC+POC)*
             Dimensions, Weight  W270 × D140 × H180 mm, 2.88 kg  Measurement Range  0–5 to 0–1,000 mgC/L f.s.
                                                                              (0 to 50,000 mgC/L f.s. with dilution function)
                                                Brochure No. C391-E110  Measurement Cycle  4 minutes minimum (Using NPOC)
                                                                 Repeatability  Within ±2% f.s.
                                                                                                     Brochure No. C391-E083
            Transportable Gas Analyzers                                            Pretreatment Unit for Portable Gas Analyzers
            NOA-7100, CGT-7100                                                     CFP-8000















     Environmental
                        NOA-7100                         CGT-7100
   Measurement Systems
            The portable all-in-one gas analyzer can be used for various purposes a variety of uses in various   The CFP-8000 is pretreatment unit that is used
            locations. All pretreatment parts required for measurement, such as the pump, filter, and electric   with NOA-7100/7000 or CGT-7100/7000.
            cooler, are built-in. Gas concentration can be measured by simply introducing sample gas. The   When performing continuous gas analysis,
            NOA-7100 supports NO X measurements for applications ranging from exhaust gas measurement   dust and moisture must be removed from the
            of combustion equipment to combustion and denitrification research.    gas before sending to the analyzer. This
             NOA-7100     Measurement components  Measurement range  Main application  essential preprocessing can be performed by
                                        NO X : 0 to 25/50/100/250/500/  Combustion equipment test /  this one device, and two lines of cleaned
             Type 1        NO X, O 2       1,000/2,500/4,000 ppm  Research         measurement gas can be used simultaneously.
                                        O 2  : 0 to 5/10/25 vol%
             Type 2                     0 to 100/250/500/1,000/2,500/  Catalyst research  Light-weight and compact, the CFP-8000 is
             (Small flow measurement)  NO X, NO, NO 2  4,000 ppm                   the perfect preprocessor for use with portable
                                                                 Brochure No. C391-E101  analyzers.
             CGT-7100     Measurement components  Measurement range  Main application  Intended use  Air and other gas samples
                                                                                   Permissible ambient
             Type 1        CO, CO 2     CO  : 0 to 1,000/5,000 ppm  Combustion equipment test /  temperature  5 to 40°C
                                        CO 2 : 0 to 5/15 vol%  Research
                                        CO  : 0 to 5 vol%                          Sampling quantity  Approx. 5 L/min (maximum)
             Type 2        CO, CH 4                           Fuel cell research
                                        CH 4 : 0 to 20 vol%
             Type 3                     CO  : 0 to 10/20 vol%  Catalyst research
             (Small flow measurement)  CO, CO 2  CO 2 : 0 to 10/20 vol%
                                                                 Brochure No. C391-E098
