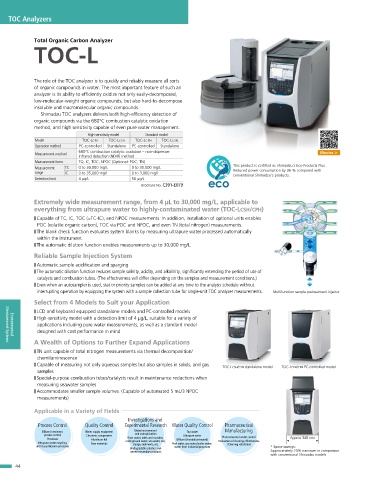

Page 44 - 2023 Shimadzu Analytical and Measuring Instruments
P. 44

TOC Analyzers



            Total Organic Carbon Analyzer
            TOC-L





            The role of the TOC analyzer is to quickly and reliably measure all sorts
            of organic compounds in water. The most important feature of such an
            analyzer is its ability to efficiently oxidize not only easily-decomposed,
            low-molecular-weight organic compounds, but also hard-to-decompose
            insoluble and macromolecular organic compounds.
               Shimadzu TOC analyzers delivers both high-efficiency detection of
            organic compounds via the 680°C combustion catalytic oxidation
            method, and high sensitivity capable of even pure water management.
                              High-sensitivity model  Standard model
             Model          TOC-LCPH  TOC-LCSH  TOC-LCPN  TOC-LCSN
             Operation method  PC-controlled  Standalone  PC-controlled  Standalone
                           680°C combustion catalytic oxidation – non-dispersive                           Movies >
             Measurement method  infrared detection (NDIR) method
             Measurement items  TO, IC, TOC, NPOC (Optional: POC, TN)
             Measurement   TC  0 to 30,000 mg/L  0 to 30,000 mg/L             This product is certified as Shimadzu’s Eco-Products Plus.
             range     IC  0 to 35,000 mg/L  0 to 3,000 mg/L                  Reduced power consumption by 36 % compared with
                                                                              conventional Shimadzu’s products.
             Detection limit  4 μg/L         50 μg/L
                                                Brochure No. C391-E079

            Extremely wide measurement range, from 4 µL to 30,000 mg/L, applicable to
            everything from ultrapure water to highly-contaminated water (TOC-LCSH/CPH)
              Capable of TC, IC, TOC (=TC-IC), and NPOC measurements. In addition, installation of optional units enables
             POC (volatile organic carbon), TOC via POC and NPOC, and even TN (total nitrogen) measurements.
              The blank check function evaluates system blanks by measuring ultrapure water processed automatically
             within the instrument.
              The automatic dilution function enables measurements up to 30,000 mg/L.
            Reliable Sample Injection System
              Automatic sample acidification and sparging
              The automatic dilution function reduces sample salinity, acidity, and alkalinity, significantly extending the period of use of
             catalysts and combustion tubes. (The effectiveness will differ depending on the samples and measurement conditions.)
              Even when an autosampler is used, stat or priority samples can be added at any time to the analysis schedule without
             interrupting operation by equipping the system with a sample collection tube for single-unit TOC analyzer measurements.  Multifunction sample pretreatment injector
            Select from 4 Models to Suit your Application
              LCD and keyboard equipped standalone models and PC-controlled models
              High-sensitivity model with a detection limit of 4 µg/L, suitable for a variety of
             applications including pure water measurements, as well as a standard model
             designed with cost performance in mind
     Environmental
            A Wealth of Options to Further Expand Applications
   Measurement Systems
              TN unit capable of total nitrogen measurements via thermal decomposition/
             chemiluminescence
              Capable of measuring not only aqueous samples but also samples in solids, and gas   TOC-LCSH/CSN standalone model   TOC-LCPH/CPN PC-controlled model
             samples
              Special-purpose combustion tubes/catalysts result in maintenance reductions when
             measuring seawater samples
              Accommodates smaller sample volumes. (Capable of automated 5 mL/3 NPOC
             measurements)
            Applicable in a Variety of Fields
                                           Investigations and
              Process Control  Quality Control  Experimental Research  Water Quality Control  Pharmaceutical
               Effluent treatment   Water supply equipment  Global environment   Tap water  Manufacturing
                process control  Electronic components  and eutrophication  Ultrapure water
                 Processes     Aluminum foil  River water, lakes and marshes,   Effluent (treated/untreated)  Pharmaceutical water control  Approx 340 mm
              Ultrapure water recycling   Raw materials  underground water, sea water, soil,   Pool water, spa water, boiler water,   Evaluation of cleaning effectiveness
             and re-purification processes    sludge, sediments, etc.  water from industrial processes   (Cleaning validation)  * Space savings:
                                            Biodegradable plastics and
                                            cement secondary products                      Approximately 20% narrower in comparison
                                                                                           with conventional Shimadzu models
