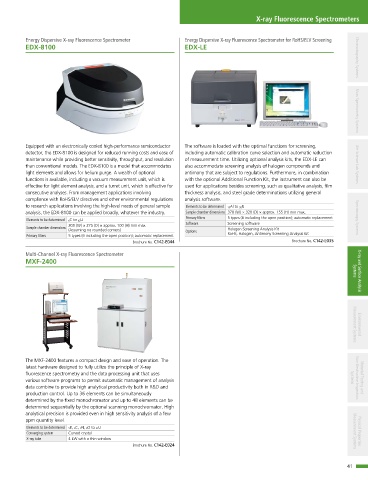

Page 41 - 2023 Shimadzu Analytical and Measuring Instruments
P. 41

X-ray Fluorescence Spectrometers



          Energy Dispersive X-ray Fluorescence Spectrometer   Energy Dispersive X-ray Fluorescence Spectrometer for RoHS/ELV Screening
          EDX-8100                                            EDX-LE                                                   Chromatography Systems



















          Equipped with an electronically cooled high-performance semiconductor   The software is loaded with the optimal functions for screening,   Mass Spectrometry Systems
          detector, the EDX-8100 is designed for reduced running costs and ease of   including automatic calibration curve selection and automatic reduction
          maintenance while providing better sensitivity, throughput, and resolution   of measurement time. Utilizing optional analysis kits, the EDX-LE can
          than conventional models. The EDX-8100 is a model that accommodates   also accommodate screening analysis of halogen compounds and   Life Science Lab Systems
          light elements and allows for helium purge. A wealth of optional   antimony that are subject to regulations. Furthermore, in combination
          functions is available, including a vacuum measurement unit, which is   with the optional Additional Function Kit, the instrument can also be
          effective for light element analysis, and a turret unit, which is effective for   used for applications besides screening, such as qualitative analysis, film
          consecutive analyses. From management applications involving   thickness analysis, and steel grade determinations utilizing general
          compliance with RoHS/ELV directives and other environmental regulations   analysis software.
          to research applications involving the high-level needs of general sample   Elements to be determined  13Al to  92U
          analysis, the EDX-8100 can be applied broadly, whatever the industry.  Sample chamber dimensions 370 (W) × 320 (D) × approx. 155 (H) mm max.
                                                               Primary filters  5 types (6 including the open position); automatic replacement  Spectroscopy Systems
          Elements to be determined  6C to  92U
                        300 (W) × 275 (D) × approx. 100 (H) mm max.   Software  Screening software
          Sample chamber dimensions  (Assuming no rounded corners)  Options  Halogen Screening Analysis Kit
          Primary filters  5 types (6 including the open position); automatic replacement  RoHS, Halogen, Antimony Screening Analysis Kit
                                             Brochure No. C142-E044                               Brochure No. C142-E035

          Multi-Channel X-ray Fluorescence Spectrometer
          MXF-2400                                                                                                    Systems  X-ray and Surface   Analysis



















          The MXF-2400 features a compact design and ease of operation. The                                           Measurement Systems  Environmental
          latest hardware designed to fully utilize the principle of X-ray
          fluorescence spectrometry and the data processing unit that uses
          various software programs to permit automatic management of analysis                                       Systems  Non-Destructive Inspection     Material Testing and
          data combine to provide high analytical productivity both in R&D and
          production control. Up to 36 elements can be simultaneously
          determined by the fixed monochromator and up to 48 elements can be
          determined sequentially by the optional scanning monochromator. High
          analytical precision is provided even in high sensitivity analysis of a few
          ppm quantity level.
          Elements to be determined  5B,  6C,  7N,  8O to  92U
          Converging system  Curved crystal                                                                           Measurement Systems  Physical Properties
          X-ray tube    4 kW with a thin window
                                             Brochure No. C142-E024



                                                                                                                    41
