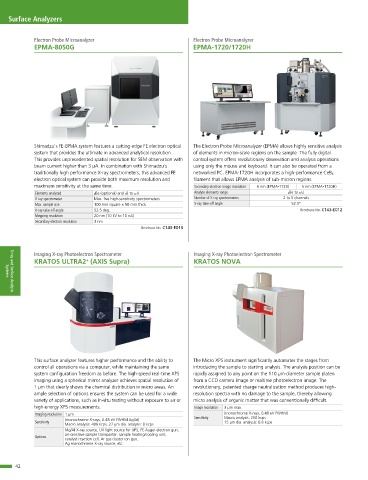

P. 42

Surface Analyzers



            Electron Probe Microanalyzer                         Electron Probe Microanalyzer
            EPMA-8050G                                           EPMA-1720/1720H



















            Shimadzu's FE-EPMA system features a cutting-edge FE electron optical   The Electron Probe Microanalyzer (EPMA) allows highly sensitive analysis
            system that provides the ultimate in advanced analytical resolution.  of elements in micron-scale regions on the sample. The fully digital
            This provides unprecedented spatial resolution for SEM observation with   control system offers revolutionary observation and analysis operations
            beam current higher than 3 μA. In combination with Shimadzu's   using only the mouse and keyboard. It can also be operated from a
            traditionally high performance X-ray spectrometers, this advanced FE   networked PC. EPMA-1720H incorporates a high- performance CeB 6
            electron optical system can provide both maximum resolution and   filament that allows EPMA analysis of sub-micron regions.
            maximum sensitivity at the same time.                Secondary-electron image resolution  6 nm (EPMA-1720)  5 nm (EPMA-1720H)
             Elements analyzed  4Be (optional) and  5B to  92U   Analyte elements range         4Be to  92U
             X-ray spectrometer   Max. five high-sensitivity spectrometers  Number of X-ray spectrometers  2 to 5 channels
             Max. sample size   100 mm square × 50 mm thick      X-ray take-off angle             52.5°
             X-ray take-off angle  52.5 deg.                                                         Brochure No. C143-E012
             Mapping resolution  20 nm (10 kV to 10 nA)
             Secondary electron resolution  3 nm
                                                Brochure No. C143-E013




            Imaging X-ray Photoelectron Spectrometer             Imaging X-ray Photoelectron Spectrometer
                              +
            KRATOS ULTRA2  (AXIS Supra)                          KRATOS NOVA

   Systems


     X-ray and Surface   Analysis











            This surface analyzer features higher performance and the ability to   The Micro XPS instrument significantly automates the stages from
            control all operations via a computer, while maintaining the same   introducing the sample to starting analysis. The analysis position can be
            system configuration freedom as before. The high-speed real-time XPS   rapidly assigned to any point on the 110 µm-diameter sample platen
            imaging using a spherical mirror analyzer achieves spatial resolution of    from a CCD camera image or realtime photoelectron image. The
            1 μm that clearly shows the chemical distribution in micro areas. An   revolutionary, patented charge neutralization method produces high-
            ample selection of options ensures the system can be used for a wide   resolution spectra with no damage to the sample, thereby allowing
            variety of applications, such as in-situ testing without exposure to air or   micro analysis of organic matter that was conventionally difficult.
            high-energy XPS measurements.                        Image resolution  3 µm max.
             Imaging resolution 1 μm                                       (monochrome X-rays, 0.48 eV FWHM)
                       (monochrome X-rays, 0.48 eV FWHM Ag3d)    Sensitivity  Macro analysis: 250 kcps
             Sensitivity                                                   15 µm dia. analysis: 0.8 kcps
                       Macro analysis: 400 kcps, 27 μm dia. analysis: 8 kcps
                       Mg/AI X-ray source, UV light source for UPS, FE Auger electron gun,
             Options   air-sensitive sample transporter, sample heating/cooling unit,
                       catalyst reaction cell, Ar gas cluster ion gun,
                       Ag monochrome X-ray source, etc.
