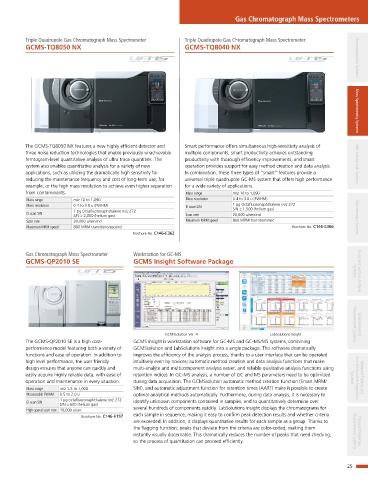

Page 25 - 2023 Shimadzu Analytical and Measuring Instruments
P. 25

Gas Chromatograph Mass Spectrometers



          Triple Quadrupole Gas Chromatograph Mass Spectrometer  Triple Quadrupole Gas Chromatograph Mass Spectrometer
          GCMS-TQ8050 NX                                      GCMS-TQ8040 NX                                           Chromatography Systems



















          The GCMS-TQ8050 NX features a new highly efficient detector and   Smart performance offers simultaneous high-sensitivity analysis of   Mass Spectrometry Systems
          three noise reduction technologies that enable previously unachievable   multiple components, smart productivity achieves outstanding
          femtogram-level quantitative analysis of ultra trace quantities. The   productivity with thorough efficiency improvements, and smart
          system also enables quantitative analysis for a variety of new   operation provides support for easy method creation and data analysis.   Life Science Lab Systems
          applications, such as utilizing the dramatically high sensitivity for   In combination, these three types of “smart” features provide a
          reducing the maintenance frequency and cost of long-term use, for   universal triple quadrupole GC-MS system that offers high performance
          example, or the high mass resolution to achieve even higher separation   for a wide variety of applications.
          from contaminants.                                   Mass range     m/z 10 to 1,090
          Mass range     m/z 10 to 1,090                       Mass resolution  0.4 to 3.0 u (FWHM)
          Mass resolution  0.4 to 3.0 u (FWHM)                 EI scan S/N    1 pg Octafluoronaphthalene m/z 272
                         1 pg Octafluoronaphthalene m/z 272                   S/N ≥ 1,500 (helium gas)
          EI scan S/N                                          Scan rate      20,000 u/second
                         S/N ≥ 2,000 (helium gas)                                                                      Spectroscopy Systems
          Scan rate      20,000 u/second                       Maximum MRM speed  800 MRM transitions/sec
          Maximum MRM speed  800 MRM transitions/second                                           Brochure No. C146-E366
                                             Brochure No. C146-E363


          Gas Chromatograph Mass Spectrometer  Workstation for GC-MS
          GCMS-QP2010 SE                     GCMS Insight Software Package                                            Systems  X-ray and Surface   Analysis














                                                        GCMSsolution Ver. 4                LabSolutions Insight       Measurement Systems  Environmental
          The GCMS-QP2010 SE is a high cost-  GCMS Insight is workstation software for GC-MS and GC-MS/MS systems, combining
          performance model featuring both a variety of   GCMSsolution and LabSolutions Insight into a single package. This software dramatically
          functions and ease of operation. In addition to   improves the efficiency of the analysis process, thanks to a user interface that can be operated
          high level performance, the user friendly   intuitively even by novices; automatic method creation and data analysis functions that make
          design ensures that anyone can quickly and   multi-analyte and multicomponent analysis easier; and reliable qualitative analysis functions using
          easily acquire highly reliable data, with ease of   retention indices. In GC-MS analysis, a number of GC and MS parameters need to be optimized
          operation and maintenance in every situation.  during data acquisition. The GCMSsolution automatic method creation function (Smart MRM/  Systems  Non-Destructive Inspection     Material Testing and
          Mass range  m/z 1.5 to 1,000       SIM), and automatic adjustment function for retention times (AART) make it possible to create
          Measurable FWHM  0.5 to 2.0 u      optimal analytical methods automatically. Furthermore, during data analysis, it is necessary to
                     1 pg octafluoronaphthalene m/z 272
          EI scan S/N                        identify unknown components contained in samples, and to quantitatively determine over
                     S/N ≥ 600 (helium gas)
          High-speed scan rate 10,000 u/sec  several hundreds of components quickly. LabSolutions Insight displays the chromatograms for
                            Brochure No. C146-E157  each sample in sequence, making it easy to confirm peak detection results and whether criteria
                                             are exceeded. In addition, it displays quantitative results for each sample as a group. Thanks to
                                             the flagging function, peaks that deviate from the criteria are color-coded, making them
                                             instantly visually discernable. This dramatically reduces the number of peaks that need checking,   Measurement Systems  Physical Properties
                                             so the process of quantitation can proceed efficiently.



                                                                                                                    25
