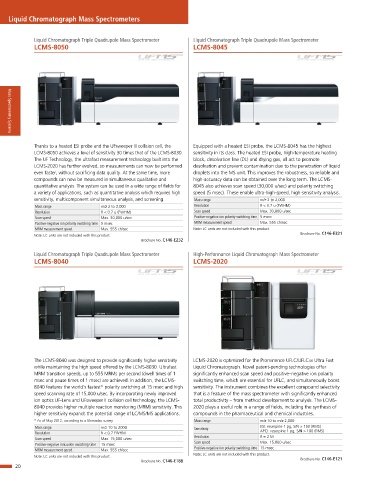

Liquid Chromatograph Mass Spectrometers



            Liquid Chromatograph Triple Quadrupole Mass Spectrometer  Liquid Chromatograph Triple Quadrupole Mass Spectrometer
            LCMS-8050                                            LCMS-8045

















    Mass Spectrometry Systems
            Thanks to a heated ESI probe and the UFsweeper III collision cell, the   Equipped with a heated ESI probe, the LCMS-8045 has the highest
            LCMS-8050 achieves a level of sensitivity 30 times that of the LCMS-8030.  sensitivity in its class. The heated ESI probe, high-temperature heating
            The UF Technology, the ultrafast measurement technology built into the   block, desolvation line (DL) and drying gas, all act to promote
            LCMS-2020 has further evolved, so measurements can now be performed   desolvation and prevent contamination due to the penetration of liquid
            even faster, without sacrificing data quality. At the same time, more   droplets into the MS unit. This improves the robustness, so reliable and
            compounds can now be measured in simultaneous qualitative and   high-accuracy data can be obtained over the long term. The LCMS-
            quantitative analysis. The system can be used in a wide range of fields for   8045 also achieves scan speed (30,000 u/sec) and polarity switching
            a variety of applications, such as quantitative analysis which requires high   speed (5 msec). These enable ultra-high-speed, high-sensitivity analysis.
            sensitivity, multicomponent simultaneous analysis, and screening.  Mass range  m/z 2 to 2,000
             Mass range           m/z 2 to 2,000                 Resolution            R < 0.7 u (FWHM)
             Resolution           R < 0.7 u (FWHM)               Scan speed            Max. 30,000 u/sec
             Scan speed           Max. 30,000 u/sec              Positive-negative ion polarity switching time 5 msec
             Positive-negative ion polarity switching time 5 msec  MRM measurement speed  Max. 555 ch/sec
             MRM measurement speed  Max. 555 ch/sec              Note: LC units are not included with this product.
                                                                                                     Brochure No. C146-E321
            Note: LC units are not included with this product.
                                                Brochure No. C146-E232
            Liquid Chromatograph Triple Quadrupole Mass Spectrometer  High-Performance Liquid Chromatograph Mass Spectrometer
            LCMS-8040                                            LCMS-2020



















            The LCMS-8040 was designed to provide significantly higher sensitivity   LCMS-2020 is optimized for the Prominence UFLC/UFLCXR Ultra Fast
            while maintaining the high speed offered by the LCMS-8030. Ultrafast   Liquid Chromatograph. Novel patent-pending technologies offer
            MRM transition speeds, up to 555 MRMs per second (dwell times of 1   significantly enhanced scan speed and positive–negative ion polarity
            msec and pause times of 1 msec) are achieved. In addition, the LCMS-  switching time, which are essential for UFLC, and simultaneously boost
            8040 features the world’s fastest* polarity switching at 15 msec and high   sensitivity. The instrument combines the excellent compound selectivity
            speed scanning rate of 15,000 u/sec. By incorporating newly improved   that is a feature of the mass spectrometer with significantly enhanced
            ion optics UF-Lens and UFsweeper II collision cell technology, the LCMS-  total productivity – from method development to analysis. The LCMS-
            8040 provides higher multiple reaction monitoring (MRM) sensitivity. This   2020 plays a useful role in a range of fields, including the synthesis of
            higher sensitivity expands the potential range of LC/MS/MS applications.  compounds in the pharmaceutical and chemical industries.
            * As of May 2012, according to a Shimadzu survey     Mass range            m/z 10 to m/z 2,000
             Mass range           m/z 10 to 2000                 Sensitivity           ESI: reserpine 1 pg, S/N > 150 (RMS)
             Resolution           R < 0.7 FWHM                                         APCI: reserpine 1 pg, S/N > 100 (RMS)
             Scan speed           Max. 15,000 u/sec              Resolution            R = 2 M
             Positive-negative ionization switching time  15 msec  Scan speed          Max. 15,000 u/sec
             MRM measurement speed  Max. 555 ch/sec              Positive-negative ion polarity switching time 15 msec
                                                                 Note: LC units are not included with this product.
            Note: LC units are not included with this product.
                                                Brochure No. C146-E188                               Brochure No. C146-E121
