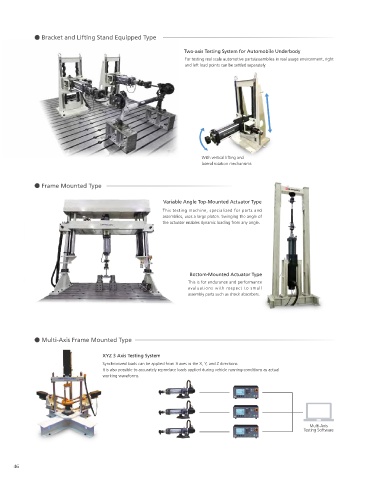

Page 46 - Shimadzu Dynamic and Fatigue Testing Systems
P. 46
Bracket and Lifting Stand Equipped Type
Two-axis Testing System for Automobile Underbody
For testing real scale automotive parts/assemblies in real usage environment, right
and left load points can be settled separately.
With vertical lifting and
lateral rotation mechanisms
Frame Mounted Type
Variable Angle Top-Mounted Actuator Type
This testing machine, specialized for parts and
assemblies, uses a large platen. Swinging the angle of
the actuator enables dynamic loading from any angle.
Bottom-Mounted Actuator Type
This is for endurance and performance
evaluations with respect to small
assembly parts such as shock absorbers.
Multi-Axis Frame Mounted Type
XYZ 3 Axis Testing System
Synchronized loads can be applied from 3 axes in the X, Y, and Z directions.
It is also possible to accurately reproduce loads applied during vehicle running conditions as actual
working waveforms.
Multi-Axis
Testing Software
46
