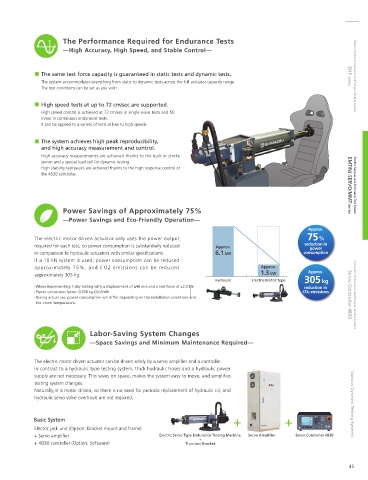

Page 45 - Shimadzu Dynamic and Fatigue Testing Systems

The Performance Required for Endurance Tests
—High Accuracy, High Speed, and Stable Control—

The same test force capacity is guaranteed in static tests and dynamic tests. EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
The system accommodates everything from static to dynamic tests across the full actuator capacity range.
The test conditions can be set as you wish.

High speed tests at up to 72 cm/sec are supported.
High speed control is achieved at 72 cm/sec in single wave tests and 50
m/sec in continuous endurance tests.
It can be applied to a variety of tests at low to high speeds.

The system achieves high peak reproducibility,
and high accuracy measurement and control.
High accuracy measurements are achieved thanks to the built in stroke
sensor and a special load cell for dynamic testing.
High stability test peaks are achieved thanks to the high response control of
the 4830 controller. EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System

Power Savings of Approximately 75%
—Power Savings and Eco-Friendly Operation—
Approx.
The electric motor driven actuator only uses the power output 75 %
required for each test, so power consumption is substantially reduced Approx. reduction in
power
in comparison to hydraulic actuators with similar speci cations. 6.1 kW consumption
If a 10 kN system is used, power consumption can be reduced
approximately 75%, and CO2 emissions can be reduced Approx.
approximately 305 kg. 1.3 kW Approx.
Hydraulic Electric Motor Type 305 kg
When implementing 7 day testing with a displacement of ±40 mm and a test force of ±2.3 kN reduction in
Power conversion factor: 0.378 kg-CO2/kWh CO2 emissions
During actual use, power consumption will differ depending on the installation conditions and Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
the room temperature.

Labor-Saving System Changes
—Space Savings and Minimum Maintenance Required—

The electric motor driven actuator can be driven solely by a servo ampli er and a controller.
In contrast to a hydraulic type testing system, thick hydraulic hoses and a hydraulic power
supply are not necessary. This saves on space, makes the system easy to move, and simpli es
testing system changes.
Naturally, it is motor driven, so there is no need for periodic replacement of hydraulic oil, and
hydraulic servo valve overhauls are not required. Various Dynamic Testing Systems

+ +
Basic System
Electric jack unit (Option: Bracket mount and frame)
+ Servo ampli er Electric Servo Type Endurance Testing Machine Servo Ampli er Servo Controller 4830
+
+ 4830 controller (Option: Software) Trunnion Bracket
