P. 50

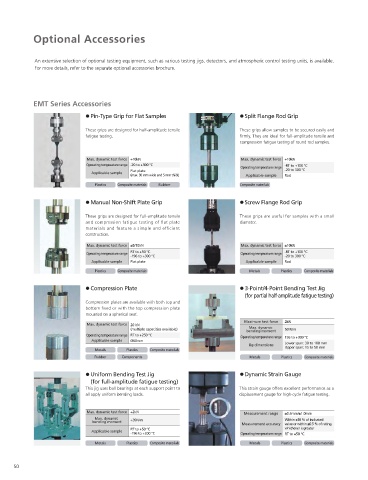

Optional Accessories
An extensive selection of optional testing equipment, such as various testing jigs, detectors, and atmospheric control testing units, is available.
For more details, refer to the separate optional accessories brochure.
EMT Series Accessories
Pin-Type Grip for Flat Samples Split Flange Rod Grip
These grips are designed for half-amplitude tensile These grips allow samples to be secured easily and
fatigue testing. rmly. They are ideal for full-amplitude tensile and
compression fatigue testing of round rod samples.
Max. dynamic test force +10kN Max. dynamic test force +10kN
Operating temperature range -20 to +300 °C Operating temperature range -RT to +100 °C
Flat plate -20 to 300 °C
Applicable sample
(max. 30 mm wide and 5 mm thick) Applicable sample Rod
Plastics Composite materials Rubber Composite materials
Manual Non-Shift Plate Grip Screw Flange Rod Grip
These grips are designed for full-amplitude tensile These grips are useful for samples with a small
and compression fatigue testing of at plate diameter.
materials and feature a simple and ef cient
construction.
Max. dynamic test force ±5/10kN Max. dynamic test force ±10kN
RT to +50 °C -RT to +100 °C
Operating temperature range Operating temperature range
-196 to +300 °C -20 to 300 °C
Applicable sample Flat plate Applicable sample Rod
Plastics Composite materials Metals Plastics Composite materials
Compression Plate 3-Point/4-Point Bending Test Jig
(for partial half-amplitude fatigue testing)
Compression plates are available with both top and
bottom xed or with the top compression plate
mounted on a spherical seat.
Maximum test force 2kN
Max. dynamic test force 20 kN
(multiple capacities available) Max. dynamic 50 N/m
bending moment
Operating temperature range RT to +250 °C Operating temperature range 196 to +300 °C
Applicable sample Ø60mm
Jig dimensions Lower span: 30 to 100 mm
Metals Plastics Composite materials Upper span: 15 to 50 mm
Rubber Components Metals Plastics Composite materials
Uniform Bending Test Jig Dynamic Strain Gauge
(for full-amplitude fatigue testing)
This jig uses ball bearings at each support point to This strain gauge offers excellent performance as a
all apply uniform bending loads. displacement gauge for high-cycle fatigue testing.
Max. dynamic test force +2kN Measurement range ±0.5mm/±1.0mm
Max. dynamic +20N/m Within ±10 % of indicated
bending moment
Measurement accuracy value or within ±0.5 % of rating,
Applicable sample RT to +50 °C whichever is greater
-196 to +200 °C Operating temperature range RT to +50 °C
Metals Plastics Composite materials Metals Plastics Composite materials
