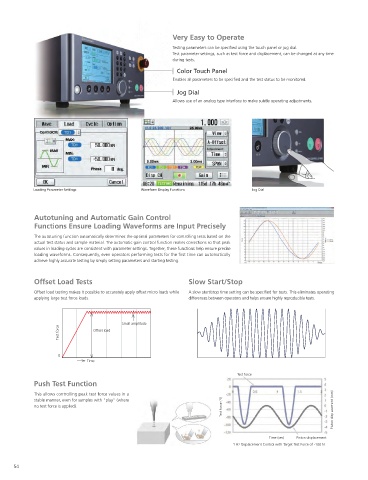

Page 54 - Shimadzu Dynamic and Fatigue Testing Systems

Very Easy to Operate
Testing parameters can be speci ed using the touch panel or jog dial.
Test parameter settings, such as test force and displacement, can be changed at any time
during tests.
Color Touch Panel
Enables all parameters to be speci ed and the test status to be monitored.
Jog Dial
Allows use of an analog type interface to make subtle operating adjustments.

Loading Parameter Settings Waveform Display Functions Jog Dial

Autotuning and Automatic Gain Control
Functions Ensure Loading Waveforms are Input Precisely
The autotuning function automatically determines the optimal parameters for controlling tests based on the
actual test status and sample material. The automatic gain control function makes corrections so that peak
values in loading cycles are consistent with parameter settings. Together, these functions help ensure precise
loading waveforms. Consequently, even operators performing tests for the rst time can automatically
achieve highly accurate testing by simply setting parameters and starting testing.

Offset Load Tests Slow Start/Stop

Offset load testing makes it possible to accurately apply offset micro loads while A slow start/stop time setting can be speci ed for tests. This eliminates operating
applying large test force loads. differences between operators and helps ensure highly reproducible tests.

Small amplitude
Test force Offset load

0
Time

Test force
Push Test Function

This allows controlling peak test force values in a
stable manner, even for samples with "play" (where
Test force (N) Piston displacement (mm)
no test force is applied).

Time (sec) Piston displacement
1 Hz Displacement Control with Target Test Force of -100 N
