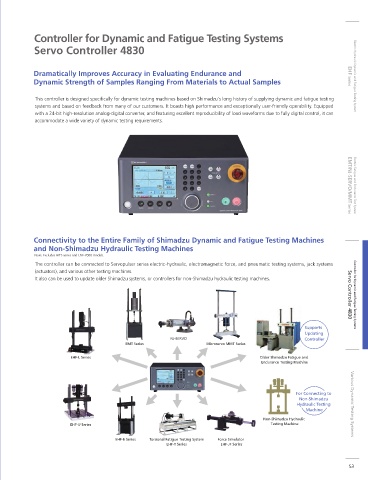

Controller for Dynamic and Fatigue Testing Systems
Servo Controller 4830

Dramatically Improves Accuracy in Evaluating Endurance and EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
Dynamic Strength of Samples Ranging From Materials to Actual Samples

This controller is designed speci cally for dynamic testing machines based on Shimadzu's long history of supplying dynamic and fatigue testing
systems and based on feedback from many of our customers. It boasts high performance and exceptionally user-friendly operability. Equipped
with a 24-bit high-resolution analog-digital converter, and featuring excellent reproducibility of load waveforms due to fully digital control, it can
accommodate a wide variety of dynamic testing requirements.

Connectivity to the Entire Family of Shimadzu Dynamic and Fatigue Testing Machines EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System
and Non-Shimadzu Hydraulic Testing Machines
Note: Excludes HITS series and USF-2000 models.
The controller can be connected to Servopulser series electric-hydraulic, electromagnetic force, and pneumatic testing systems, jack systems
(actuators), and various other testing machines.
It also can be used to update older Shimadzu systems, or controllers for non-Shimadzu hydraulic testing machines. Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems

Supports
Updating
NJ-SERVO Controller
EMT Series Microservo MMT Series
EHF-L Series Older Shimadzu Fatigue and
Endurance Testing Machine

For Connecting to
Non-Shimadzu
Hydraulic Testing Various Dynamic Testing Systems
Machine
Non-Shimadzu Hydraulic
EHF-U Series Testing Machine

EHF-E Series Torsional Fatigue Testing System Force Simulator
EHF-T Series EHF-JF Series
