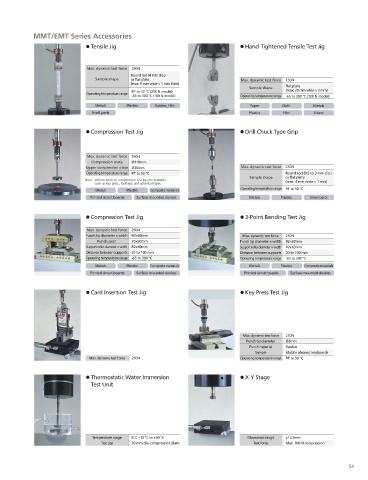

MMT/EMT Series Accessories
Tensile Jig Hand-Tightened Tensile Test Jig
Max. dynamic test force 250N
Round rod (4 mm dia.)
Sample shape or at plate Max. dynamic test force 150N
(max. 5 mm wide × 1 mm thick)
Sample shape Flat plate
RT to 50 °C (250 N model) (max. 20 mm wide × 2 mm)
Operating temperature range
-65 to 300 °C (100 N model) Operating temperature range -65 to 300 °C (100 N model)
Metals Plastics Rubber, Film Paper Cloth Metals
Small parts Plastics Film Fibers
Compression Test Jig Drill Chuck Type Grip
Max. dynamic test force 250N
Compression plate Ø110mm
Upper compression plate Ø30mm Max. dynamic test force 250N
Operating temperature range RT to 50 °C Round rod (0.5 to 3 mm dia.)
Sample shape or at plate
Note: Various kinds of compression test jigs are available, (max. 4 mm wide × 1 mm)
such as key press, toothed, and spherical types.
Metals Plastics Composite materials Operating temperature range RT to 50 °C
Printed circuit boards Surface mounted devices Metals Plastics Small parts
Compression Test Jig 3-Point Bending Test Jig
Max. dynamic test force 250N
Punch tip diameter × width R2×60mm Max. dynamic test force 250N
Punch span 20×60mm Punch tip diameter × width R2×60mm
Support roller diameter × width R2×60mm Support roller diameter × width R2×60mm
Distance between supports 20 to 100 mm Distance between supports 20 to 100 mm
Operating temperature range -65 to 300 °C Operating temperature range -65 to 300 °C
Metals Plastics Composite materials Metals Plastics Composite materials
Printed circuit boards Surface mounted devices Printed circuit boards Surface mounted devices
Card Insertion Test Jig Key Press Test Jig
Max. dynamic test force 250N
Punch tip diameter Ø3mm
Punch material Rubber
Sample Mobile phones, keyboards
Max. dynamic test force 250N Operating temperature range RT to 50 °C
Thermostatic Water Immersion X-Y Stage
Test Unit
Temperature range R.T. +10 °C to +60 °C Movement range ±12.5mm
Test jigs 30 mm dia. compression plate Test force Max. 100 N compression
