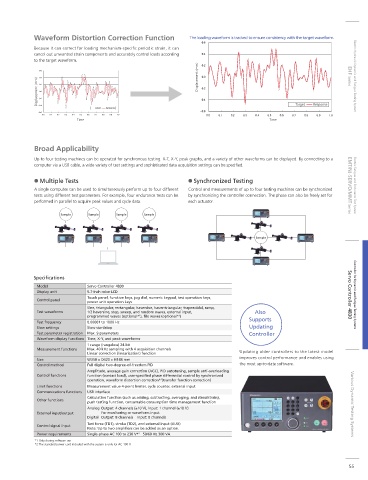

Waveform Distortion Correction Function The loading waveform is tracked to ensure consistency with the target waveform.

Because it can correct for loading mechanism-speci c periodic strain, it can
cancel out unwanted strain components and accurately control loads according
to the target waveform.

Displacement (mm) Displacement (mm) EHF Series Electric Hydraulic Dynamic and Fatigue Testing System

Target Response Target Response
Time Time

Broad Applicability
Up to four testing machines can be operated for synchronous testing. X-T, X-Y, peak graphs, and a variety of other waveforms can be displayed. By connecting to a
computer via a USB cable, a wide variety of test settings and sophisticated data acquisition settings can be speci ed.

Multiple Tests Synchronized Testing
A single computer can be used to simultaneously perform up to four different Control and measurements of up to four testing machines can be synchronized EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System
tests using different test parameters. For example, four endurance tests can be by synchronizing the controller connection. The phase can also be freely set for
performed in parallel to acquire peak values and cycle data. each actuator.

Sample Sample Sample Sample

Sample

Specifications
Model Servo Controller 4830
Display unit 5.7-inch color LCD
Touch panel, function keys, jog dial, numeric keypad, test operation keys, Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
Control panel
power unit operation keys
Sine, triangular, rectangular, haversine, haver-triangular, trapezoidal, ramp,
Test waveforms 1/2 haversine, step, sweep, and random waves, external input, Also
programmed waves (optional* ), file waves (optional* 1 )
1
Test frequency 0.00001 to 1000 Hz Supports
Slow settings Slow start/stop Updating
Test parameter registration Max. 9 parameters Controller
Waveform display functions Time, X-Y, and peak waveforms
1 range (rangeless) 24-bit
Measurement functions Max. 40 kHz sampling with 4 acquisition channels
Linear correction (linearization) function Updating older controllers to the latest model
improves control performance and enables using
Size W350 × D420 × H148 mm
Control method Full digital two-degree-of-freedom PID the most up-to-date software.
Amplitude, average gain correction (AGC), PID autotuning, sample anti-overloading
Control functions function (contact load), user-specified phase differential control by synchronized
1
operation, waveform distortion correction* (transfer function correction)
Limit functions Measurement value 4-point limiter, cycle counter, external input
Communications functions USB interface
Calculation function (such as adding, subtracting, averaging, and stress/strain),
Other functions
push testing function, consumable consumption time management function Various Dynamic Testing Systems
Analog Output: 4 channels (±10 V), Input: 1 channel (±10 V)
External input/output For monitoring or waveform input
Digital Output: 8 channels Input: 8 channels
Control signal input Test force (TD1), stroke (TD2), and external input (AUX)
Note: Up to two amplifiers can be added as an option.
Power requirements Single-phase AC 100 to 230 V* 2 50/60 Hz 300 VA
*1 Only during software use
*2 The standard power cord included with the system is only for AC 100 V.
