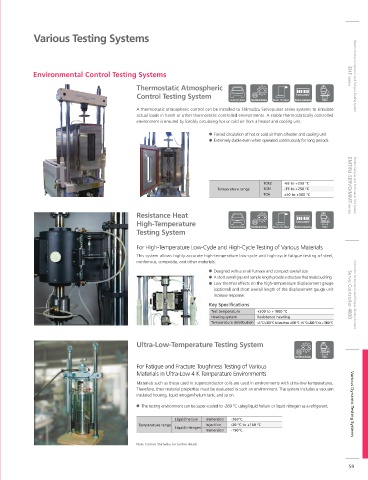

Various Testing Systems

Environmental Control Testing Systems EHF Series Electric Hydraulic Dynamic and Fatigue Testing System

Thermostatic Atmospheric
Control Testing System
Automobiles Steel, Metals, Machines Resin, Rubber Electrical, Communication R&D
A thermostatic atmospheric control can be installed to Shimadzu Servopulser series systems to simulate
actual loads in harsh or other thermostatic controlled environments. A stable thermostatically controlled
environment is ensured by forcibly circulating hot or cold air from a heater and cooling unit.
Forced circulation of hot or cold air from a heater and cooling unit
Extremely stable even when operated continuously for long periods

TCR2 -65 to +250 °C EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System
Temperature range TCR1 -35 to +250 °C
TCH +50 to +300 °C

Resistance Heat
High-Temperature Automobiles Steel, Metals, Machines Resin, Rubber Electrical, Communication R&D
Testing System

For High-Temperature Low-Cycle and High-Cycle Testing of Various Materials
This system allows highly accurate high-temperature low-cycle and high-cycle fatigue testing of steel,
nonferrous, composite, and other materials.
Designed with a small furnace and compact overall size
A short overall grip and sample length provide a structure that resists buckling.
Low thermal effects on the high-temperature displacement gauge
(optional) and short overall length of the displacement gauge unit
increase response. Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
Key Speci cations
Test temperature +300 to +1000 °C
Heating system Resistance heating
Temperature distribution ±3 °C/+300 °C to less than +800 °C ±5 °C/+800 °C to +1000 °C

Ultra-Low-Temperature Testing System

Steel, Metals, Machines R&D
For Fatigue and Fracture Toughness Testing of Various
Materials in Ultra-Low 4 K Temperature Environments

Materials such as those used in superconductor coils are used in environments with ultra-low temperatures.
Therefore, their material properties must be evaluated in such an environment. The system includes a vacuum
insulated housing, liquid nitrogen/helium tank, and so on.
The testing environment can be super-cooled to -269 °C using liquid helium or liquid nitrogen as a refrigerant. Various Dynamic Testing Systems

Liquid helium Immersion -269°C
Temperature range Injection -20 °C to +160 °C
Liquid nitrogen
Immersion -196°C
Note: Contact Shimadzu for further details.
