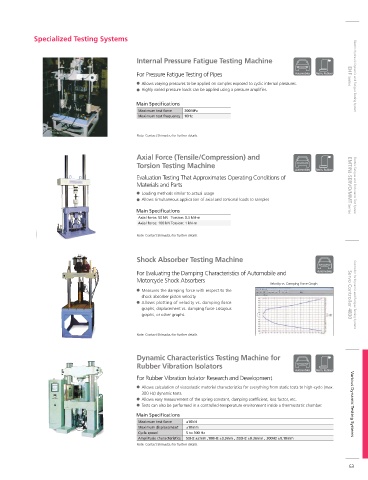

Page 63 - Shimadzu Dynamic and Fatigue Testing Systems

Specialized Testing Systems

Internal Pressure Fatigue Testing Machine

For Pressure Fatigue Testing of Pipes Automobiles Resin, Rubber EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
Allows varying pressures to be applied on samples exposed to cyclic internal pressures.
Highly varied pressure loads can be applied using a pressure ampli er.

Main Speci cations
Maximum test force 300MPa
Maximum test frequency 10Hz

Note: Contact Shimadzu for further details.

Axial Force (Tensile/Compression) and
Torsion Testing Machine
Automobiles Resin, Rubber
Evaluation Testing That Approximates Operating Conditions of
Materials and Parts EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System
Loading methods similar to actual usage
Allows simultaneous application of axial and torsional loads to samples
Main Speci cations
Axial force: 50 kN Torsion: 0.5 kN-m
Axial force: 100 kN Torsion: 1 kN-m
Note: Contact Shimadzu for further details.

Shock Absorber Testing Machine

For Evaluating the Damping Characteristics of Automobile and Automobiles
Motorcycle Shock Absorbers
Velocity vs. Damping Force Graph
Measures the damping force with respect to the
shock absorber piston velocity. Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
Allows plotting of velocity vs. damping force
graphs, displacement vs. damping force Lissajous
graphs, or other graphs.

Note: Contact Shimadzu for further details.

Dynamic Characteristics Testing Machine for
Rubber Vibration Isolators
Automobiles Resin, Rubber
For Rubber Vibration Isolator Research and Development

Allows calculation of viscoelastic material characteristics for everything from static tests to high-cycle (max.
300 Hz) dynamic tests.
Allows easy measurement of the spring constant, damping coef cient, loss factor, etc.
Tests can also be performed in a controlled-temperature environment inside a thermostatic chamber. Various Dynamic Testing Systems
Main Speci cations
Maximum test force ±10kN
Maximum displacement ±10mm
Cycle speed 5 to 300 Hz
Amplitude characteristics 50Hz ±2mm ,100Hz ±0.9mm , 200Hz ±0.36mm , 300Hz ±0.18mm
Note: Contact Shimadzu for further details.
