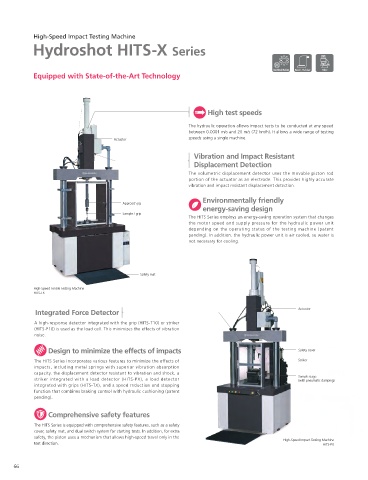

High-Speed Impact Testing Machine
Hydroshot HITS-X Series

Steel, Metals, Machines Resin, Rubber R&D
Equipped with State-of-the-Art Technology

High test speeds

The hydraulic operation allows impact tests to be conducted at any speed
between 0.0001 m/s and 20 m/s (72 km/h). It allows a wide range of testing
Actuator speeds using a single machine.

Vibration and Impact Resistant
Displacement Detection
The volumetric displacement detector uses the movable piston rod
portion of the actuator as an electrode. This provides highly accurate
vibration and impact resistant displacement detection.
Environmentally friendly
Approach jig
energy-saving design
Sample / grip
The HITS Series employs an energy-saving operation system that changes
the motor speed and supply pressure for the hydraulic power unit
depending on the operating status of the testing machine (patent
pending). In addition, the hydraulic power unit is air cooled, so water is
not necessary for cooling.

Safety mat

High-Speed Tensile Testing Machine
HITS-TX

Actuator
Integrated Force Detector
A high-response detector integrated with the grip (HITS-T10) or striker
(HITS-P10) is used as the load cell. This minimizes the effects of vibration
noise.

Design to minimize the effects of impacts Safety cover
The HITS Series incorporates various features to minimize the effects of Striker
impacts, including metal springs with superior vibration absorption
capacity, the displacement detector resistant to vibration and shock, a
Sample stage
striker integrated with a load detector (HITS-PX), a load detector (with pneumatic clamping)
integrated with grips (HITS-TX), and a speed reduction and stopping
function that combines braking control with hydraulic cushioning (patent
pending).

Comprehensive safety features
The HITS Series is equipped with comprehensive safety features, such as a safety
cover, safety mat, and dual switch system for starting tests. In addition, for extra
safety, the piston uses a mechanism that allows high-speed travel only in the
High-Speed Impact Testing Machine
test direction. HITS-PX
