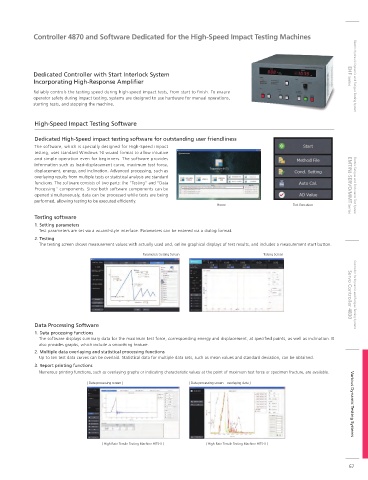

Controller 4870 and Software Dedicated for the High-Speed Impact Testing Machines

Dedicated Controller with Start Interlock System EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
Incorporating High-Response Amplifier
Reliably controls the testing speed during high-speed impact tests, from start to nish. To ensure
operator safety during impact testing, systems are designed to use hardware for manual operations,
starting tests, and stopping the machine.

High-Speed Impact Testing Software

Dedicated High-Speed impact testing software for outstanding user friendliness
The software, which is specially designed for High-Speed impact
testing, uses standard Windows 10 wizard format to allow intuitive
and simple operation even for beginners. The software provides
information such as load-displacement curve, maximum test force,
displacement, energy, and inclination. Advanced processing, such as
overlaying results from multiple tests or statistical analysis are standard
functions. The software consists of two parts: the “Testing” and “Data EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System
Processing” components. Since both software components can be
opened simultaneously, data can be processed while tests are being
performed, allowing testing to be executed ef ciently.
Home Test Execution
Testing software
1. Setting parameters
Test parameters are set via a wizard-style interface. Parameters can be entered via a dialog format.
2. Testing
The testing screen shows measurement values with actually used and, online graphical displays of test results, and includes a measurement start button.
Parameters Setting Screen Testing Screen

Data Processing Software Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
1. Data processing functions
The software displays summary data for the maximum test force, corresponding energy and displacement, at speci ed points, as well as inclination. It
also provides graphs, which include a smoothing feature.
2. Multiple data overlaying and statistical processing functions
Up to ten test data curves can be overlaid. Statistical data for multiple data sets, such as mean values and standard deviation, can be obtained.
3. Report printing functions
Numerous printing functions, such as overlaying graphs or indicating characteristic values at the point of maximum test force or specimen fracture, are available.

[ Data processing screen ] [ Data processing screen – overlaying data ] Various Dynamic Testing Systems

( High Rate Tensile Testing Machine HITS-X ) ( High Rate Tensile Testing Machine HITS-X )
