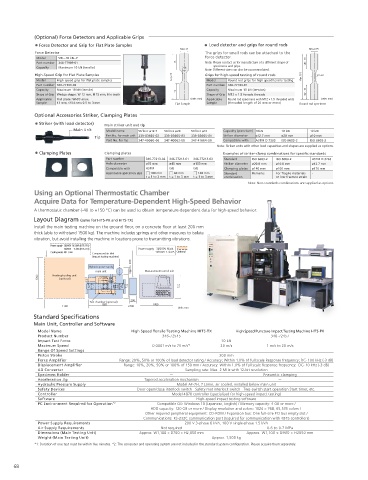

Page 68 - Shimadzu Dynamic and Fatigue Testing Systems

(Optional) Force Detectors and Applicable Grips
Force Detector and Grip for Flat Plate Samples Load detector and grips for round rods
Max.13 M6×0.75
Force Detector The grips for small rods can be attached to the
Model SHL−10 kN−P force detector.
Part number 346-77909-01 15 Note: Please contact us for manufacture of a different shape of Min. 10
Capacity Maximum 10 kN (tensile) 2~6 specimens and grips.
Note: Different sizes can also be accommodated.
High-Speed Grip for Flat Plate Samples Max.70 Grips for high-speed testing of round rods Max.100 ø1~ø3
Model High-speed grip for flat plate samples Model Round rod grips for high-speed tensile testing
Part number 346-77160-02 Part number 346-77184-01
Capacity Maximum 10 kN (tensile) 15 Capacity Maximum 10 kN (tension)
Shape of Grip Wedge shape: W 13 mm, H 15 mm, file teeth Shape of Grip M12 × 1.5 female threads Min. 10
Applicable Flat plate: Width max. (Units: mm) Applicable Round rod specimens with M12 × 1.5 threaded ends (Units: mm)
Sample 13 mm, thickness 0.5 to 3 mm Flat Sample Sample (threaded length of 20 mm or more) Round rod specimen
Optional Accessories Striker, Clamping Plates
Striker (with load detector)
Main striker unit and tip
Main Unit Model name Striker ø12.7 Striker ø20 Striker ø10 Capacity (puncture) 10kN 10 kN 10 kN
Tip Part No. for main unit 339-83665-02 339-83665-03 339-83665-01 Striker diameter ø12.7 mm ø20 mm ø10 mm
Part No. for tip 347-40060-06 347-40062-09 347-41604-00 Compatible with ASTM D 7363 ISO 6603-2 ISO 6603-2
Note: Striker units with other load capacities and shapes are supplied as options.
Clamping Plates Clamping plates Examples of striker-clamp combinations for specific standards
Part number 346-77213-02 346-77213-01 346-77213-03 Standard ISO 6603-2 ISO 6603-2 ASTM D 3763
Hole diameter ø76 mm ø40 mm ø100 mm Striker diameter ø20.0 mm ø10.0 mm ø12.7 mm
Compatible with ASTM ISO ISO Clamping plates ø140 mm ø100 mm ø176 mm
Applicable specimen size 100 mm 60 mm 140 mm Standard Remarks For fragile materials -
t = 1 to 3 mm t = 1 to 3 mm t = 1 to 3 mm combination or low fracture strain
Note: Non-standards combinations are supplied as options.
Using an Optional Thermostatic Chamber
Acquire Data for Temperature-Dependent High-Speed Behavior
A thermostatic chamber (-40 to +150 °C) can be used to obtain temperature-dependent data for high-speed behavior.
Layout Diagram (same for HITS-PX and HITS-TX)
Install the main testing machine on the ground oor, on a concrete oor at least 200 mm
thick (able to withstand 1500 kg). The machine includes springs and other measures to isolate
vibration, but avoid installing the machine in locations prone to transmitting vibrations.
Power supply 3Ø200V 16.5kVA (HITS-P10)
3Ø200V 15kVA (HITS-T10) Power supply 3Ø200V 6kVA
Cooling water 40 L / min Compressed air inlet 1Ø100V 1.5kVA Optional
(impact testing machine)
Approx. 200
main unit Measurement/control unit
1200 Heating/cooling unit
(optional)
700 700

200
Test chamber (optional)
1100 1 0 2 0 2400 1 0 0 0 Units: mm
Standard Specifications
Main Unit, Controller and Software
Model Name High Speed Tensile Testing Machine HITS-TX High Speed Puncture Impact Testing Machine HITS-PX
Product Number 346-72545 346-72457
Impact Test Force 10 kN
Maximum Speed 0.0001 m/s to 20 m/s *1 20 m/s 1 m/s to 20 m/s
Range Of Speed Settings
Piston Stroke 300 mm
Force Amplifier Range: 20%, 50% or 100% of load detector rating / Accuracy: Within 1.0% of full scale Response frequency: DC- 100 kHz (-3 dB)
Displacement Amplifier Range: 10%, 20%, 50% or 100% of 150 mm / Accuracy: Within 1.0% of full scale Response frequency: DC- 10 kHz (-3 dB)
AD Converter Sampling rate: Max. 2 MHz with 12-bit resolution
Specimen Holder - Pneumtic clamping
Acceleration Jig Tapered acceleration mechanism -
Hydraulic Pressure Supply Model AF-7H, 7 L/min, air cooled, installed below main unit
Safety Devices Door open/close interlock switch Safety mat interlock switch Two-switch start operation Start timer, etc.
Controller Model 4870 controller (specialized for high-speed impact testing)
Software High-speed impact testing software
PC Environment Required for Operation *2 Compatible OS: Windows 10 (Japanese, English) / Memory capacity: 4 GB or more /
HDD capacity: 120 GB or more / Display resolution and colors: 1024 × 768, 65,535 colors /
Other required peripheral equipment: CD-ROM / Expansion bus: One full-size PCI bus empty slot /
Communications: RS-232C communication port (required for communication with 4875 controllers)
Power Supply Requirements 200 V 3-phase 6 kVA, 100 V single-phase 1.5 kVA
Air Supply Requirements Not required 0.6 to 0.7 MPa
Dimensions (Main Testing Unit) Approx. W1,100 × D700 × H2,850 mm Approx. W1,100 × D900 × H2850 mm
Weight (Main Testing Unit) Approx. 1,500 kg
*1: Duration of one test must be within ve minutes. *2: The computer and operating system are not included in the standard system con guration. Please acquire them separately.
