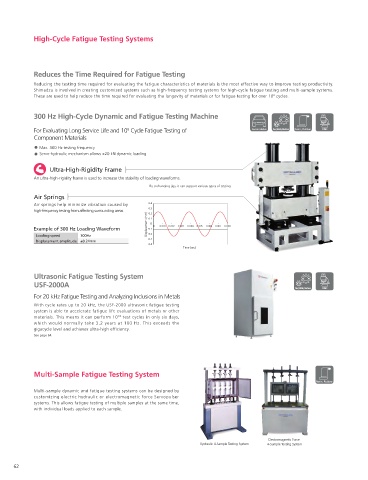

High-Cycle Fatigue Testing Systems Specialized Testing Systems

Internal Pressure Fatigue Testing Machine
Reduces the Time Required for Fatigue Testing For Pressure Fatigue Testing of Pipes Automobiles Resin, Rubber EHF Series Electric Hydraulic Dynamic and Fatigue Testing System

Reducing the testing time required for evaluating the fatigue characteristics of materials is the most effective way to improve testing productivity. Allows varying pressures to be applied on samples exposed to cyclic internal pressures.
Shimadzu is involved in creating customized systems such as high-frequency testing systems for high-cycle fatigue testing and multi-sample systems. Highly varied pressure loads can be applied using a pressure amplifier.
8
These are used to help reduce the time required for evaluating the longevity of materials or for fatigue testing for over 10 cycles.
Main Specifications
Maximum test force 300MPa
300 Hz High-Cycle Dynamic and Fatigue Testing Machine Maximum test frequency 10Hz

8
For Evaluating Long Service Life and 10 Cycle Fatigue Testing of Automobiles Steel, Metals, Machines Resin, Rubber R&D
Component Materials Note: Contact Shimadzu for further details.
Max. 300 Hz testing frequency
Servo-hydraulic mechanism allows ±20 kN dynamic loading
Axial Force (Tensile/Compression) and
Torsion Testing Machine
Ultra-High-Rigidity Frame Automobiles Resin, Rubber
An ultra-high-rigidity frame is used to increase the stability of loading waveforms. Evaluation Testing That Approximates Operating Conditions of
By exchanging jigs, it can support various types of testing. Materials and Parts EMT/NJ-SERVO/MMT Series Electric Hydraulic Dynamic and Fatigue Testing System
Loading methods similar to actual usage
Air Springs Allows simultaneous application of axial and torsional loads to samples
Air springs help minimize vibration caused by 0.4
high-frequency testing from affecting surrounding areas. 0.3 Main Specifications
Displacement (mm) 0.1 0 0 0.001 0.002 0.003 0.004 0.005 0.006 0.007 0.008 Axial force: 100 kN Torsion: 1 kN-m
0.2
Axial force: 50 kN Torsion: 0.5 kN-m
Example of 300 Hz Loading Waveform -0.1
Loading speed 300Hz -0.2 Note: Contact Shimadzu for further details.
Displacement amplitude ±0.24mm -0.3
-0.4
Time (sec)
Shock Absorber Testing Machine

Ultrasonic Fatigue Testing System For Evaluating the Damping Characteristics of Automobile and Automobiles
Motorcycle Shock Absorbers
USF-2000A Velocity vs. Damping Force Graph
Steel, Metals, Machines R&D
Measures the damping force with respect to the
For 20 kHz Fatigue Testing and Analyzing Inclusions in Metals shock absorber piston velocity. Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
Allows plotting of velocity vs. damping force
With cycle rates up to 20 kHz, the USF-2000 ultrasonic fatigue testing
system is able to accelerate fatigue life evaluations of metals or other graphs, displacement vs. damping force Lissajous
10
materials. This means it can perform 10 test cycles in only six days, graphs, or other graphs.
which would normally take 3.2 years at 100 Hz. This exceeds the
gigacycle level and achieves ultra-high efficiency.
See page 64. Note: Contact Shimadzu for further details.

Dynamic Characteristics Testing Machine for
Rubber Vibration Isolators
Multi-Sample Fatigue Testing System For Rubber Vibration Isolator Research and Development Automobiles Resin, Rubber
Resin, Rubber
Allows calculation of viscoelastic material characteristics for everything from static tests to high-cycle (max.
Multi-sample dynamic and fatigue testing systems can be designed by 300 Hz) dynamic tests.
customizing electric hydraulic or electromagnetic force Servopulser Allows easy measurement of the spring constant, damping coefficient, loss factor, etc.
systems. This allows fatigue testing of multiple samples at the same time, Tests can also be performed in a controlled-temperature environment inside a thermostatic chamber. Various Dynamic Testing Systems
with individual loads applied to each sample.
Main Specifications
Maximum test force ±10kN
Maximum displacement ±10mm
Cycle speed 5 to 300 Hz
Electromagnetic Force Amplitude characteristics 50Hz ±2mm ,100Hz ±0.9mm , 200Hz ±0.36mm , 300Hz ±0.18mm
Hydraulic 4-Sample Testing System 4-Sample Testing System Note: Contact Shimadzu for further details.
