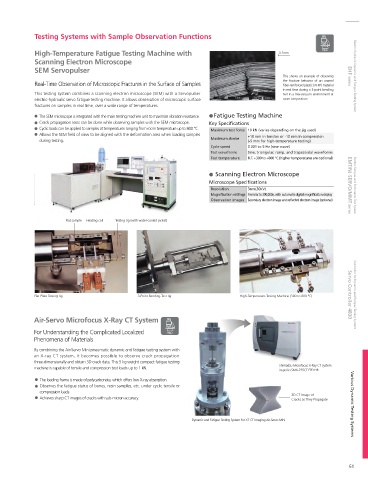

Page 61 - Shimadzu Dynamic and Fatigue Testing Systems

Testing Systems with Sample Observation Functions

High-Temperature Fatigue Testing Machine with 0.2mm R&D
Scanning Electron Microscope
SEM Servopulser
This shows an example of observing EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
the fracture behavior of an aramid
Real-Time Observation of Microscopic Fractures in the Surface of Samples ber-reinforced plastic (AFRP) material
in real time during a 3-point bending
This testing system combines a scanning electron microscope (SEM) with a Servopulser test in a low-vacuum environment at
electric-hydraulic servo fatigue testing machine. It allows observation of microscopic surface room temperature.
fractures on samples in real time, over a wide range of temperatures.

The SEM microscope is integrated with the main testing machine unit to maximize vibration resistance. Fatigue Testing Machine
Crack propagation tests can be done while observing samples with the SEM microscope. Key Speci cations
Cyclic loads can be applied to samples at temperatures ranging from room temperature up to 800 °C. Maximum test force 10 kN (varies depending on the jig used)
Allows the SEM eld of view to be aligned with the deformation area when loading samples +10 mm in tension or -10 mm in compression
during testing. Maximum stroke (-5 mm for high-temperature testing)
Cycle speed 0.001 to 5 Hz (sine wave)
Test waveforms Sine, triangular, ramp, and trapezoidal waveforms
Test temperature R.T. +300 to +800 °C (higher temperatures are optional)

Scanning Electron Microscope
Microscope Speci cations
Resolution 3nm(30kV) EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System
Magnification settings From 5x to 300,000x, with automatic digital magnification display
Observation images Secondary electron image and reflected electron image (optional)

Flat sample Heating coil Testing Jig (with water-cooled jacket)

Flat Plate Testing Jig 3-Point Bending Test Jig High-Temperature Testing Machine (300 to 800 °C) Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems

Air-Servo Microfocus X-Ray CT System

For Understanding the Complicated Localized R&D
Phenomena of Materials

By combining the Air-Servo Mini pneumatic dynamic and fatigue testing system with
an X-ray CT system, it becomes possible to observe crack propagation
three-dimensionally and obtain 3D crack data. This 5 kg weight compact fatigue testing Shimadzu Microfocus X-Ray CT System
machine is capable of tensile and compression test loads up to 1 kN.
inspeXio SMX-225CT FPD HR
The loading frame is made of polycarbonate, which offers low X-ray absorption.
Observes the fatigue status of bones, resin samples, etc. under cyclic tensile or
compression loads.
3D CT Image of
Achieves sharp CT images of cracks with sub-micron accuracy. Cracks as They Propagate Various Dynamic Testing Systems

Dynamic and Fatigue Testing System for XT CT Imaging Air-Servo Mini
