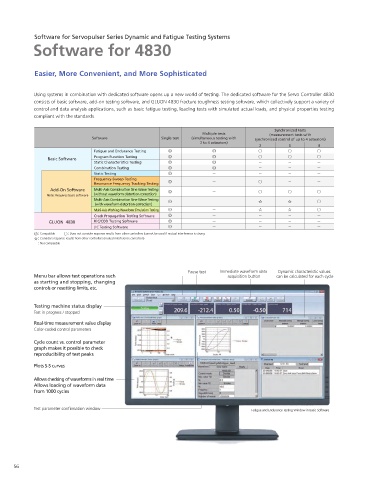

Page 56 - Shimadzu Dynamic and Fatigue Testing Systems

Software for Servopulser Series Dynamic and Fatigue Testing Systems
Software for 4830

Easier, More Convenient, and More Sophisticated

Using systems in combination with dedicated software opens up a new world of testing. The dedicated software for the Servo Controller 4830
consists of basic software, add-on testing software, and GLUON 4830 fracture toughness testing software, which collectively support a variety of
control and data analysis applications, such as basic fatigue testing, loading tests with simulated actual loads, and physical properties testing
compliant with the standards.
Synchronized tests
Multiple tests (measurement tests with
Software Single test (simultaneous testing with synchronized control of up to 4 actuators)
2 to 4 actuators)
2 3 4
Fatigue and Endurance Testing
Program Function Testing
Basic Software
Static Characteristics Testing
Combination Testing
Static Testing
Frequency-Sweep Testing
Resonance Frequency Tracking Testing
Add-On Software Multi-Axis Combination Sine Wave Testing
Note: Requires basic software (without waveform distortion correction)
Multi-Axis Combination Sine Wave Testing
(with waveform distortion correction)
Multi-Axis Working Waveform Simulation Testing
Crack Propagation Testing Software
GLUON 4830 KIC/COD Testing Software
JIC Testing Software
Compatible Does not consider response results from other controllers (cannot be used if mutual interference is strong
Considers response results from other controllers (mutual interference correction)
Not compatible

Pause test Immediate waveform data Dynamic characteristic values
Menu bar allows test operations such acquisition button can be calculated for each cycle
as starting and stopping, changing
controls or resetting limits, etc.

Testing machine status display
Test in progress / stopped
Real-time measurement value display
Color-coded control parameters
Cycle count vs. control parameter
graph makes it possible to check
reproducibility of test peaks
Plots S-S curves

Allows checking of waveforms in real time
Allows loading of waveform data
from 1000 cycles

Test parameter con rmation window Fatigue and Endurance Testing Window in Basic Software
