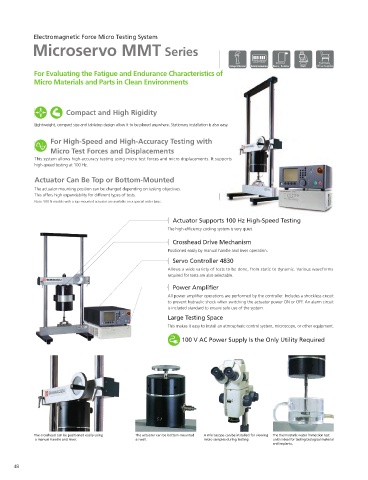

Electromagnetic Force Micro Testing System
Microservo MMT Series

Furniture,
Biological Material Electrical, Communication Resin, Rubber R&D Of ce Supplies
For Evaluating the Fatigue and Endurance Characteristics of
Micro Materials and Parts in Clean Environments

Compact and High Rigidity

Lightweight, compact size and tabletop design allow it to be placed anywhere. Stationary installation is also easy.

For High-Speed and High-Accuracy Testing with
Micro Test Forces and Displacements
This system allows high-accuracy testing using micro test forces and micro displacements. It supports
high-speed testing at 100 Hz.
Actuator Can Be Top or Bottom-Mounted
The actuator mounting position can be changed depending on testing objectives.
This offers high expandability for different types of tests.
Note: 500 N models with a top-mounted actuator are available on a special order basis.

Actuator Supports 100 Hz High-Speed Testing
The high-ef ciency cooling system is very quiet.
Crosshead Drive Mechanism
Positioned easily by manual handle and lever operation.
Servo Controller 4830
Allows a wide variety of tests to be done, from static to dynamic. Various waveforms
required for tests are also selectable.

Power Amplifier
All power ampli er operations are performed by the controller. Includes a shockless circuit
to prevent hydraulic shock when switching the actuator power ON or OFF. An alarm circuit
is included standard to ensure safe use of the system.
Large Testing Space
This makes it easy to install an atmospheric control system, microscope, or other equipment.

100 V AC Power Supply Is the Only Utility Required

The crosshead can be positioned easily using The actuator can be bottom-mounted A microscope can be installed for viewing The thermostatic water immersion test
a manual handle and lever. as well. micro samples during testing. unit is ideal for testing biological material
and implants.
