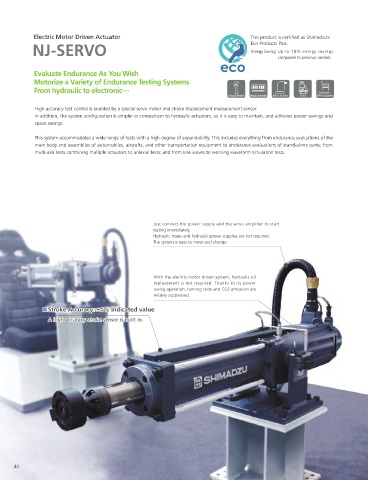

Page 44 - Shimadzu Dynamic and Fatigue Testing Systems

Electric Motor Driven Actuator This product is certi ed as Shimadzu’s
NJ-SERVO Eco-Products Plus.
Energy Saving: Up to 78% energy savings
compared to previous models

Evaluate Endurance As You Wish
Motorize a Variety of Endurance Testing Systems
From hydraulic to electronic···· Furniture,
Biological Material Electrical, Communication Resin, Rubber R&D Of ce Supplies
High accuracy test control is enabled by a special servo motor and stroke displacement measurement sensor.
In addition, the system con guration is simpler in comparison to hydraulic actuators, so it is easy to maintain, and achieves power savings and
space savings.

This system accommodates a wide range of tests with a high degree of expandability. This includes everything from endurance evaluations of the
main body and assemblies of automobiles, aircrafts, and other transportation equipment to endurance evaluations of stand-alone parts; from
multi-axis tests combining multiple actuators to uniaxial tests; and from sine waves to working waveform simulation tests.

Just connect the power supply and the servo ampli er to start
testing immediately.
Hydraulic hoses and hydraulic power supplies are not required.
The system is easy to move and change.

With the electric motor driven system, hydraulic oil
replacement is not required. Thanks to its power
saving operation, running costs and CO2 emissions are
reliably suppressed.

Stroke Accuracy: ±1% indicated value
A high accuracy stroke sensor is built in.
