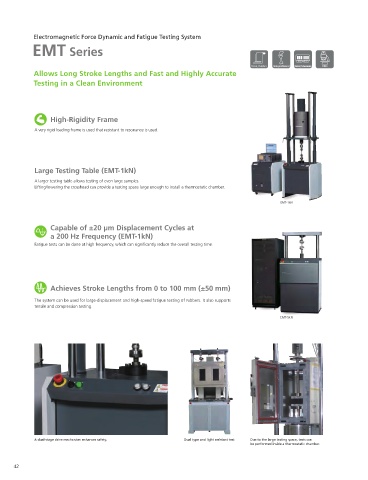

P. 42
Electromagnetic Force Dynamic and Fatigue Testing System
EMT Series
Resin, Rubber Biological Material Electrical, Communication R&D
Allows Long Stroke Lengths and Fast and Highly Accurate
Testing in a Clean Environment
High-Rigidity Frame
A very rigid loading frame is used that resistant to resonance is used.
Large Testing Table (EMT-1kN)
A larger testing table allows testing of even large samples.
Lifting/lowering the crosshead can provide a testing space large enough to install a thermostatic chamber.
&.5 L/
Capable of ±20 m Displacement Cycles at
a 200 Hz Frequency (EMT-1kN)
Fatigue tests can be done at high frequency, which can signi cantly reduce the overall testing time.
Achieves Stroke Lengths from 0 to 100 mm (±50 mm)
The system can be used for large-displacement and high-speed fatigue testing of rubbers. It also supports
tensile and compression testing.
EMT-5kN
A dual-stage drive mechanism enhances safety. Dual type and light resistant test Due to the large testing space, tests can
be performed inside a thermostatic chamber.
42
