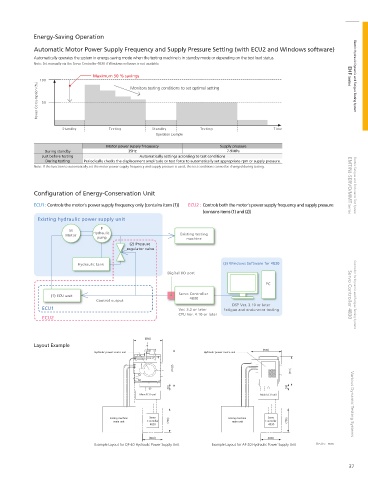

Energy-Saving Operation
Automatic Motor Power Supply Frequency and Supply Pressure Setting (with ECU2 and Windows software)
Automatically operates the system in energy-saving mode when the testing machine is in standby mode or depending on the test load status.
Note: Set manually via the Servo Controller 4830 if Windows software is not available.
Maximum 50 % savings EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
100 Monitors testing conditions to set optimal setting
Power Consumption (%) 50
Standby Testing Standby Testing Time
Operation Example
Motor power supply frequency Supply pressure
During standby 35Hz 7-9MPa
Just before testing Automatically settings according to test conditions
During testing Periodically checks the displacement amplitude or test force to automatically set appropriate rpm or supply pressure.
Note: If the function to automatically set the motor power supply frequency and supply pressure is used, the test conditions cannot be changed during testing.
Con guration of Energy-Conservation Unit EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System
ECU1 : Controls the motor's power supply frequency only (contains item (1)) ECU2 : Controls both the motor's power supply frequency and supply pressure
(contains items (1) and (2))
Existing hydraulic power supply unit
P P
M M
Hydraulic
Motor Hydraulic Existing testing
Motor
pump machine
pump
(2) Pressure
regulator valve
Hydraulic tank
Hydraulic tank (3) Windows Software for 4830
Digital I/O port
PC
PC
Servo Controller
Servo Controller
(1) ECU unit 4830 Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
(1) ECU unit
4830
Control output
DSP Ver. 3.10 or later
ECU1 Ver. 3.2 or later Fatigue and endurance testing
CPU Ver. 4.10 or later
ECU2
(860)
Layout Example
(900)
Hydraulic power source unit Hydraulic power source unit
(1100) (870)
200 200
Main ECU unit Main ECU unit Various Dynamic Testing Systems
Testing machine Servo Testing machine Servo
main unit Controller (700) main unit Controller (700)
4830 4830
(600) (600)
Example Layout for QF-40 Hydraulic Power Supply Unit Example Layout for AF-20 Hydraulic Power Supply Unit Units: mm
