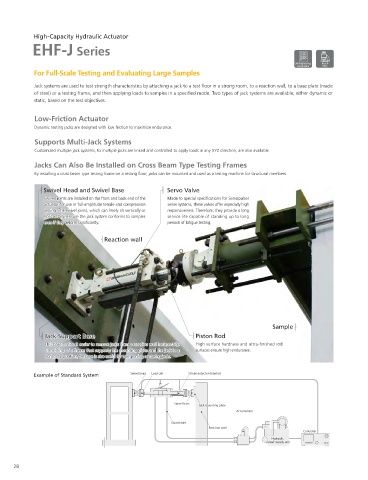

Page 28 - Shimadzu Dynamic and Fatigue Testing Systems

High-Capacity Hydraulic Actuator
EHF-J Series

Civil Engineering,
Construction R&D
For Full-Scale Testing and Evaluating Large Samples
Jack systems are used to test strength characteristics by attaching a jack to a test oor in a strong room, to a reaction wall, to a base plate (made
of steel) or a testing frame, and then applying loads to samples in a speci ed mode. Two types of jack systems are available, either dynamic or
static, based on the test objectives.

Low-Friction Actuator
Dynamic testing jacks are designed with low friction to maximize endurance.
Supports Multi-Jack Systems

Customized multiple jack systems, to multiple jacks are linked and controlled to apply loads in any XYZ direction, are also available.
Jacks Can Also Be Installed on Cross Beam Type Testing Frames
By installing a cross beam type testing frame on a testing oor, jacks can be mounted and used as a testing machine for structural members.

Swivel Head and Swivel Base Servo Valve
Swivels joints are installed on the front and back end of the Made to special speci cations for Servopulser
actuator for use in full-amplitude tensile and compression series systems, these valves offer especially high
testing. The swivel joints, which can freely tilt vertically or responsiveness. Therefore, they provide a long
horizontally, ensure the jack system conforms to samples service life capable of standing up to long
even if they deform signi cantly. periods of fatigue testing.

Reaction wall

Sample
Jack Support Base Piston Rod
This base makes it easier to remove jacks from a reaction wall horizontally. High surface hardness and ultra- nished rod
Consisting of a frame that supports the mounting plate and the jack in a surfaces ensure high endurance.
horizontal position, the base is also useful for transporting or storing jacks.

Example of Standard System Swivel head Load cell Stroke detector (interior)

Swivel base
Jack mounting plate
Accumulator
Guard wire
Reaction wall
Controller
Hydraulic
power supply unit
