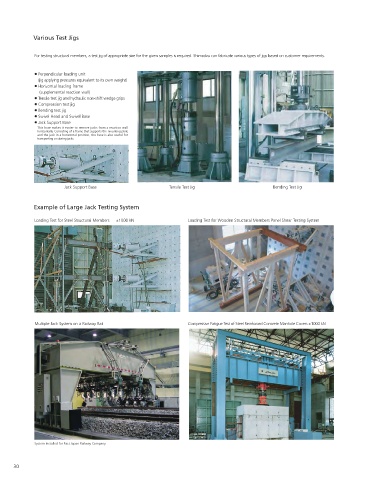

Various Test Jigs ±1000 kN Structural Member Testing Machine

The loading unit consists of a cross beam type frame (with friction clamps) built on a
For testing structural members, a test jig of appropriate size for the given samples is required. Shimadzu can fabricate various types of jigs based on customer requirements. test floor in combination with dynamic jacks. The frame was constructed with friction
clamps clamped to four columns.

Perpendicular loading unit EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
(jig applying pressures equivalent to its own weight)
Horizontal loading frame
(supplemental reaction wall)
Tensile test jig and hydraulic non-shift wedge grips
Compression test jig
Bending test jig
Swivel Head and Swivel Base
Jack Support Base
This base makes it easier to remove jacks from a reaction wall
horizontally. Consisting of a frame that supports the mounting plate
and the jack in a horizontal position, the base is also useful for
transporting or storing jacks.
Specifications Model name
Dynamic: ±1000 kN
Capacity
Static: ±1500 kN
Stroke ±100mm
Jig attachment spacing Max. 5 m
Distance between columns 3.7m
Grips Hydraulic
Jack Support Base Tensile Test Jig Bending Test Jig EMT/NJ-SERVO/MMT Series Electric Hydraulic Dynamic and Fatigue Testing System

Example of Large Jack Testing System

Loading Test for Steel Structural Members ±1000 kN Loading Test for Wooden Structural Members Panel Shear Testing System

±10 MN Structural Member Testing Machine
This large structural member testing machine is cable of dynamic loads up to 8 MN
(static loads up to 10 MN). The system is used to evaluate large full-scale CFRP
aircraft materials and components by applying estimated loads experienced during
takeoff and landing or during rocket launches.

Specifications Model name
Dynamic: ±8 MN
Capacity
Static: ±10 MN Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
Stroke ±150mm
Jig attachment spacing 1000 to 4000 mm
Distance between columns 3000mm×3000mm
Multiple Jack System on a Railway Rail Compressive Fatigue Test of Steel Reinforced Concrete Manhole Covers ±1000 kN
Grips for Tensile Test

System Installed for East Japan Railway Company Various Dynamic Testing Systems
