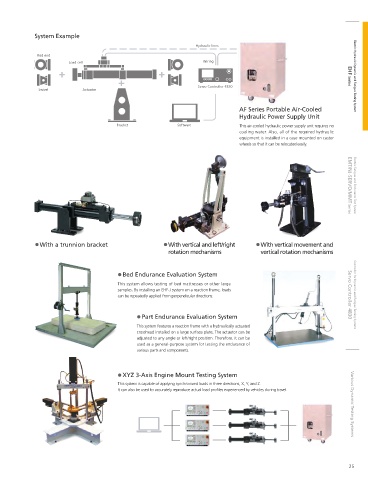

System Example
Hydraulic lines
Rod end
Load cell Wiring

Servo Controller 4830 EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
Swivel Actuator

AF Series Portable Air-Cooled
Hydraulic Power Supply Unit

Bracket Software This air-cooled hydraulic power supply unit requires no
cooling water. Also, all of the required hydraulic
equipment is installed in a case mounted on caster
wheels so that it can be relocated easily. EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System

With a trunnion bracket With vertical and left/right With vertical movement and
rotation mechanisms vertical rotation mechanisms

Bed Endurance Evaluation System
This system allows testing of bed mattresses or other large
samples. By installing an EHF-J system on a reaction frame, loads
can be repeatedly applied from perpendicular directions. Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems

Part Endurance Evaluation System
This system features a reaction frame with a hydraulically actuated
crosshead installed on a large surface plate. The actuator can be
adjusted to any angle or left/right position. Therefore, it can be
used as a general-purpose system for testing the endurance of
various parts and components.

XYZ 3-Axis Engine Mount Testing System
This system is capable of applying synchronized loads in three directions, X, Y, and Z.
It can also be used to accurately reproduce actual load pro les experienced by vehicles during travel. Various Dynamic Testing Systems
