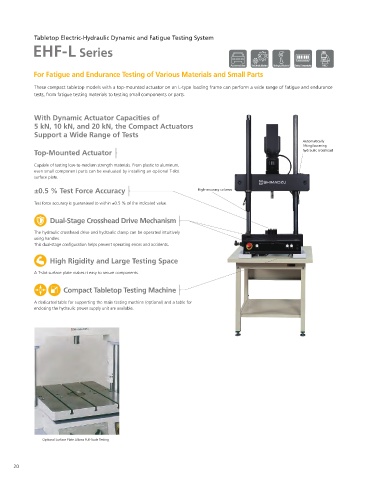

Tabletop Electric-Hydraulic Dynamic and Fatigue Testing System
EHF-L Series

Automobiles Steel, Metals, Machines Biological Material Electrical, Communication R&D
For Fatigue and Endurance Testing of Various Materials and Small Parts

These compact tabletop models with a top-mounted actuator on an L-type loading frame can perform a wide range of fatigue and endurance
tests, from fatigue testing materials to testing small components or parts.

With Dynamic Actuator Capacities of
5 kN, 10 kN, and 20 kN, the Compact Actuators
Support a Wide Range of Tests
Automatically
lifting/lowering
Top-Mounted Actuator hydraulic crosshead

Capable of testing low-to-medium strength materials. From plastic to aluminum,
even small component parts can be evaluated by installing an optional T-slot
surface plate.
±0.5 % Test Force Accuracy High-accuracy column

Test force accuracy is guaranteed to within ±0.5 % of the indicated value.

Dual-Stage Crosshead Drive Mechanism

The hydraulic crosshead drive and hydraulic clamp can be operated intuitively
using handles.
This dual-stage con guration helps prevent operating errors and accidents.

High Rigidity and Large Testing Space

A T-slot surface plate makes it easy to secure components.

Compact Tabletop Testing Machine

A dedicated table for supporting the main testing machine (optional) and a table for
enclosing the hydraulic power supply unit are available.

Optional Surface Plate Allows Full-Scale Testing
