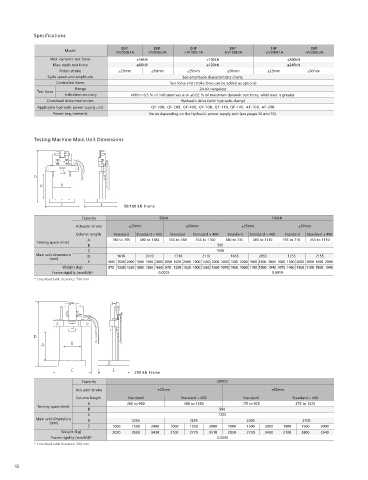

Page 18 - Shimadzu Dynamic and Fatigue Testing Systems

Specifications

EHF EHF EHF EHF EHF EHF
Model -UV050k1A -UV050k2A -UV100k1A -UV100k2A -UV200k1A -UV200k2A
Max. dynamic test force ±50kN ±100kN ±200kN
Max. static test force ±60kN ±120kN ±240kN
Piston stroke ±25mm ±50mm ±25mm ±50mm ±25mm ±50mm
Cycle speed and amplitude See amplitude characteristics charts.
Controlled items Test force and stroke (two can be added as options)
Range 24-bit rangeless
Test force
Indication accuracy Within 0.5 % of indicated value or ±0.02 % of maximum dynamic test force, whichever is greater
Crosshead drive mechanism Hydraulic drive (with hydraulic clamp)
Applicable hydraulic power supply unit QF-10B, QF-20B, QF-40B, QF-70B, QF-110, QF-140, AF-10B, AF-20B
Power requirements Varies depending on the hydraulic power supply unit (see pages 34 and 35).

Testing Machine Main Unit Dimensions

D
A B

C E 50/100 kN frame

Capacity 50kN 100kN
Actuator stroke ±25mm ±50mm ±25mm ±50mm
Column length Standard Standard + 400 Standard Standard + 400 Standard Standard + 400 Standard Standard + 400
A 180 to 785 380 to 1185 155 to 760 355 to 1160 180 to 735 380 to 1135 155 to 710 355 to 1110
Testing space (mm)
B 560
C 1046
Main unit dimensions D 1610 2010 1710 2110 1655 2055 1755 2155
(mm)
E 1000 1500 2000 1000 1500 2000 1000 1500 2000 1000 1500 2000 1000 1500 2000 1000 1500 2000 1000 1500 2000 1000 1500 2000
Weight (kg) 970 1330 1630 1000 1360 1660 970 1330 1630 1000 1360 1660 1070 1460 1900 1100 1500 1940 1070 1460 1900 1100 1500 1940
Frame rigidity (mm/kN)* 0.0025 0.0019
* Crosshead table clearance: 500 mm

D
A B

C E 200 kN Frame
Capacity 200kN
Actuator stroke ±25mm ±50mm
Column length Standard Standard + 400 Standard Standard + 400
A 200 to 950 400 to 1350 175 to 925 375 to 1325
Testing space (mm)
B 560
C 1200
Main unit dimensions D 2255 2655 2305 2705
(mm)
E 1000 1500 2000 1000 1500 2000 1000 1500 2000 1000 1500 2000
Weight (kg) 2020 2690 3430 2100 2770 3510 2050 2720 3460 2130 2800 3540
Frame rigidity (mm/kN)* 0.0009
* Crosshead table clearance: 500 mm

18
