Page 31 - Shimadzu Dynamic and Fatigue Testing Systems

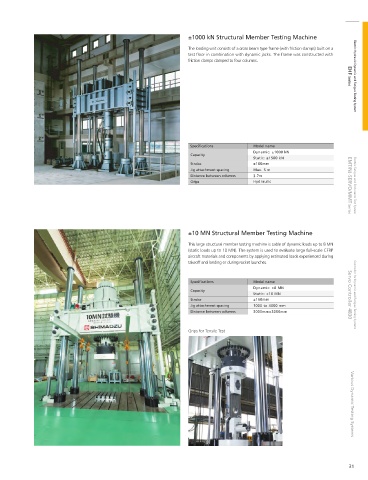

P. 31
±1000 kN Structural Member Testing Machine
The loading unit consists of a cross beam type frame (with friction clamps) built on a
test oor in combination with dynamic jacks. The frame was constructed with
friction clamps clamped to four columns. EHF Series Electric Hydraulic Dynamic and Fatigue Testing System
Specifications Model name
Dynamic: ±1000 kN
Capacity
Static: ±1500 kN
Stroke ±100mm
Jig attachment spacing Max. 5 m
Distance between columns 3.7m
Grips Hydraulic EMT/NJ-SERVO/MMT Series Electric Fatigue and Endurance Test System
±10 MN Structural Member Testing Machine
This large structural member testing machine is cable of dynamic loads up to 8 MN
(static loads up to 10 MN). The system is used to evaluate large full-scale CFRP
aircraft materials and components by applying estimated loads experienced during
takeoff and landing or during rocket launches.
Specifications Model name
Dynamic: ±8 MN
Capacity
Static: ±10 MN Servo Controller 4830 Controller for Dynamic and Fatigue Testing Systems
Stroke ±150mm
Jig attachment spacing 1000 to 4000 mm
Distance between columns 3000mm×3000mm
Grips for Tensile Test
Various Dynamic Testing Systems
31
