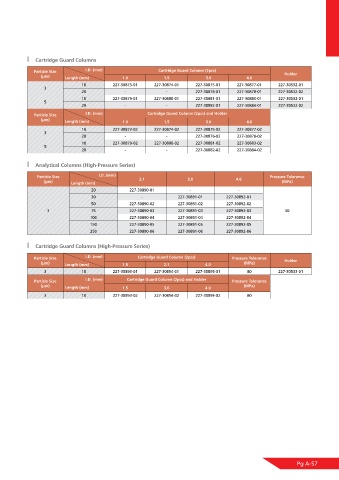

Page 61 - Shimadu Consumables Catalog

Cartridge Guard Columns

Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
10 227-30873-01 227-30874-01 227-30875-01 227-30877-01 227-30532-01
3
20 - - 227-30876-01 227-30878-01 227-30532-02
10 227-30879-01 227-30880-01 227-30881-01 227-30883-01 227-30532-01
5
20 - - 227-30882-01 227-30884-01 227-30532-02
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
10 227-30873-02 227-30874-02 227-30875-02 227-30877-02
3
20 - - 227-30876-02 227-30878-02
10 227-30879-02 227-30880-02 227-30881-02 227-30883-02
5
20 - - 227-30882-02 227-30884-02

Analytical Columns (High-Pressure Series)
Particle Size I.D. (mm) Pressure Tolerance
(μm) Length (mm) 2.1 3.0 4.6 (MPa)
20 227-30890-01 - -
30 - 227-30891-01 227-30892-01
50 227-30890-02 227-30891-02 227-30892-02
3 75 227-30890-03 227-30891-03 227-30892-03 50
100 227-30890-04 227-30891-04 227-30892-04
150 227-30890-05 227-30891-05 227-30892-05
250 227-30890-06 227-30891-06 227-30892-06

Cartridge Guard Columns (High-Pressure Series)

Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Pressure Tolerance Holder
(μm) Length (mm) 1.5 2.1 4.0 (MPa)
3 10 227-30893-01 227-30894-01 227-30895-01 80 227-30533-01
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder Pressure Tolerance
(μm) Length (mm) 1.5 3.0 4.0 (MPa)
3 10 227-30893-02 227-30894-02 227-30895-02 80
