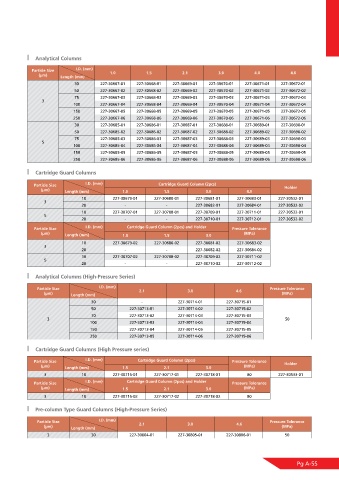

Page 59 - Shimadu Consumables Catalog

Analytical Columns

Particle Size I.D. (mm) 1.0 1.5 2.1 3.0 4.0 4.6
(μm) Length (mm)
30 227-30667-01 227-30668-01 227-30669-01 227-30670-01 227-30671-01 227-30672-01
50 227-30667-02 227-30668-02 227-30669-02 227-30670-02 227-30671-02 227-30672-02
75 227-30667-03 227-30668-03 227-30669-03 227-30670-03 227-30671-03 227-30672-03
3
100 227-30667-04 227-30668-04 227-30669-04 227-30670-04 227-30671-04 227-30672-04
150 227-30667-05 227-30668-05 227-30669-05 227-30670-05 227-30671-05 227-30672-05
250 227-30667-06 227-30668-06 227-30669-06 227-30670-06 227-30671-06 227-30672-06
30 227-30685-01 227-30686-01 227-30687-01 227-30688-01 227-30689-01 227-30690-01
50 227-30685-02 227-30686-02 227-30687-02 227-30688-02 227-30689-02 227-30690-02
75 227-30685-03 227-30686-03 227-30687-03 227-30688-03 227-30689-03 227-30690-03
5
100 227-30685-04 227-30686-04 227-30687-04 227-30688-04 227-30689-04 227-30690-04
150 227-30685-05 227-30686-05 227-30687-05 227-30688-05 227-30689-05 227-30690-05
250 227-30685-06 227-30686-06 227-30687-06 227-30688-06 227-30689-06 227-30690-06

Cartridge Guard Columns

Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
10 227-30679-01 227-30680-01 227-30681-01 227-30683-01 227-30532-01
3
20 - - 227-30682-01 227-30684-01 227-30532-02
10 227-30707-01 227-30708-01 227-30709-01 227-30711-01 227-30532-01
5
20 - - 227-30710-01 227-30712-01 227-30532-02
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder Pressure Tolerance
(μm) Length (mm) 1.0 1.5 3.0 (MPa)
10 227-30679-02 227-30680-02 227-30681-02 227-30683-02
3
20 - - 227-30682-02 227-30684-02
10 227-30707-02 227-30708-02 227-30709-02 227-30711-02
5
20 - - 227-30710-02 227-30712-02
Analytical Columns (High-Pressure Series)

Particle Size I.D. (mm) Pressure Tolerance
(μm) Length (mm) 2.1 3.0 4.6 (MPa)
30 - 227-30714-01 227-30715-01
50 227-30713-01 227-30714-02 227-30715-02
70 227-30713-02 227-30714-03 227-30715-03
3 50
100 227-30713-03 227-30714-04 227-30715-04
150 227-30713-04 227-30714-05 227-30715-05
250 227-30713-05 227-30714-06 227-30715-06

Cartridge Guard Columns (High Pressure series)

Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Pressure Tolerance Holder
(μm) Length (mm) 1.5 2.1 3.0 (MPa)
3 10 227-30716-01 227-30717-01 227-30718-01 80 227-30533-01
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder Pressure Tolerance
(μm) Length (mm) 1.5 2.1 3.0 (MPa)
3 10 227-30716-02 227-30717-02 227-30718-02 80

Pre-column Type Guard Columns (High-Pressure Series)

Particle Size I.D. (mm) 2.1 3.0 4.6 Pressure Tolerance
(μm) Length (mm) (MPa)
3 30 227-30804-01 227-30805-01 227-30806-01 50

Pg A-55
