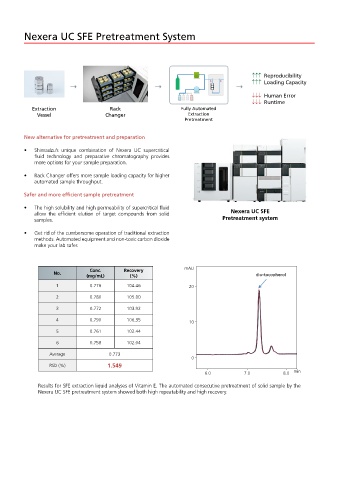

Nexera UC SFE Pretreatment System







                                                                                         ↑↑↑  Reproducibility
                                                                                         ↑↑↑  Loading Capacity

                                                                                         ↓↓↓  Human Error
                                                                                         ↓↓↓  Runtime
            Extraction                  Rack                     Fully Automated
              Vessel                  Changer                      Extraction
                                                                  Pretreatment

          New alternative for pretreatment and preparation

          •  Shimadzu’s  unique  combination  of  Nexera  UC  supercritical
             fluid  technology  and  preparative  chromatography  provides
             more options for your sample preparation.

          •  Rack Changer offers more sample loading capacity for higher
             automated sample throughput.

          Safer and more efficient sample pretreatment

          •  The high solubility and high permeability of supercritical fluid
             allow  the  efficient  elution  of  target  compounds  from  solid   Nexera UC SFE
             samples.                                                          Pretreatment system
          •  Get rid of the cumbersome operation of traditional extraction
             methods. Automated equipment and non-toxic carbon dioxide
             make your lab safer.




                                 Conc.       Recovery             mAU
                    No.
                               (mg/mL)         (%)                                         d-α-tocopherol
                     1           0.776        104.46               20
                     2           0.780        105.00

                     3           0.772        103.92

                     4           0.790        106.35               10
                     5           0.761        102.44
                     6           0.758        102.04

                  Average              0.773
                                                                    0
                  RSD (%)              1.549
                                                                         6.0           7.0           8.0  min

              Results for SFE extraction liquid analyses of Vitamin E. The automated consecutive pretreatment of solid sample by the
              Nexera UC SFE pretreatment system showed both high repeatability and high recovery.
