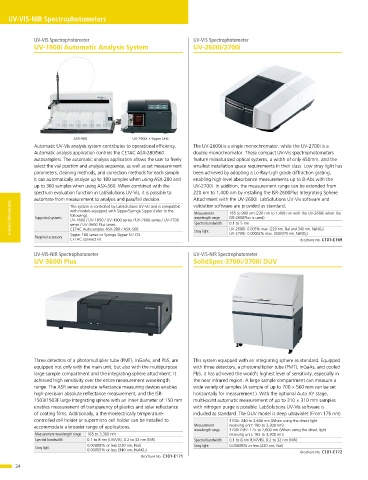

Page 34 - 2023 Shimadzu Analytical and Measuring Instruments
P. 34

UV-VIS-NIR Spectrophotometers



            UV-VIS Spectrophotometer                             UV-VIS Spectrophotometer
            UV-1900i Automatic Analysis System                   UV-2600i/2700i

















                         ASX-560             UV-1900i + Sipper Unit
            Automatic UV-Vis analysis system contributes to operational efficiency.   The UV-2600i is a single monochromator, while the UV-2700i is a
            Automatic analysis application controls the CETAC ASX-280/560   double monochromator. These compact UV-Vis spectrophotometers
            autosamplers. The automatic analysis application allows the user to freely   feature miniaturized optical systems, a width of only 450mm, and the
            select the vial position and analysis sequence, as well as set measurement   smallest installation space requirements in their class. Low stray light has
            parameters, cleaning methods, and correction methods for each sample.   been achieved by adopting a Lo-Ray-Ligh grade diffraction grating,
            It can automatically analyze up to 180 samples when using ASX-280 and   enabling high-level absorbance measurements up to 8-Abs with the
            up to 360 samples when using ASX-560. When combined with the   UV-2700i. In addition, the measurement range can be extended from
            spectrum evaluation function in LabSolutions UV-Vis, it is possible to   220 nm to 1,400 nm by installing the ISR-2600Plus Integrating Sphere
            automate from measurement to analysis and pass/fail decision.  Attachment with the UV-2600i. LabSolutions UV-Vis software and
                        This system is controlled by LabSolutions UV-Vis and is compatible   validation software are provided as standard.
                        with models equipped with Sipper/Syringe Sipper (refer to the   Measurement   185 to 900 nm (220 nm to 1,400 nm with the UV-2600i when the
             Supported systems  following).                      wavelength range  ISR-2600Plus is used)
                        UV-1800 / UV-1850 / UV-1900 series / UV-2600 series / UV-2700
                        series / UV-3600 Plus series             Spectral bandwidth  0.1 to 5 nm
                        CETAC Autosampler ASX-280 / ASX-560      Stray light  UV-2600i: 0.005% max. (220 nm, Nal and 340 nm, NaNO 2)
                        Sipper 160 series or Syringe Sipper N / CN           UV-2700i: 0.00002% max. (340/370 nm, NaNO 2)
             Required accessory
    Spectroscopy Systems
                        CETAC connect kit                                                            Brochure No. C101-E169
            UV-VIS-NIR Spectrophotometer                         UV-VIS-NIR Spectrophotometer
            UV-3600i Plus                                        SolidSpec-3700i/3700i DUV



















            Three detectors of a photomultiplier tube (PMT), InGaAs, and PbS, are   This system equipped with an integrating sphere as standard. Equipped
            equipped not only with the main unit, but also with the multipurpose   with three detectors, a photomultiplier tube (PMT), InGaAs, and cooled
            large-sample compartment and the integrating sphere attachment. It   PbS, it has achieved the world's highest level of sensitivity, especially in
            achieved high sensitivity over the entire measurement wavelength   the near infrared region. A large sample compartment can measure a
            range. The ASR series absolute reflectance measuring devices enables   wide variety of samples (A sample of up to 700 × 560 mm can be set
            high-precision absolute reflectance measurement, and the ISR-   horizontally for measurement.). With the optional Auto XY stage,
            1503/1503F large integrating sphere with an inner diameter of 150 mm   multi-point automatic measurement of up to 310 × 310 mm samples
            enables measurement of transparency of plastics and solar reflectance   with nitrogen purge is possible. LabSolutions UV-Vis software is
            of coating films. Additionally, a thermoelectrically temperature-  included as standard. The DUV model is deep ultraviolet (From 175 nm).
            controlled cell holder or supermicro cell holder can be installed to   3700i: 240 to 2,600 nm (When using the direct light
            accommodate a broader range of applications.         Measurement   receiving unit: 190 to 3,300 nm)
                                                                 wavelength range  3700i DUV: 175 to 2,600 nm (When using the direct light
             Measurement wavelength range  185 to 3,300 nm                   receiving unit: 165 to 3,300 nm)
             Spectral bandwidth  0.1 to 8 nm (UV/VIS), 0.2 to 32 nm (NIR)  Spectral bandwidth  0.1 to 8 nm (UV/VIS), 0.2 to 32 nm (NIR)
             Stray light      0.00008% or less (220 nm, Nal)     Stray light  0.00008% or less (220 nm, NaI)
                              0.00005% or less (340 nm, NaNO 2)                                      Brochure No. C101-E172
                                                Brochure No. C101-E171
      34
