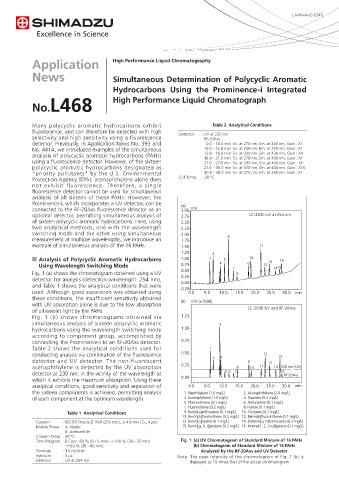

LAAN-A-LC-E245







            Application                  High Performance Liquid Chromatography

            News                         Simultaneous Determination of Polycyclic Aromatic


                                         Hydrocarbons Using the Prominence-i  Integrated
            No.L468                      High Performance Liquid Chromatograph





            Many polycyclic aromatic hydrocarbons exhibit                   Table 2  Analytical Conditions
            fluorescence, and can therefore be detected with high
            selectivity and high sensitivity using a fluorescence   Detector   : UV at 230 nm
                                                                          RF-20Axs

            detector. Previously, in Application News No. 393 and          0.0 - 10.0 min  Ex. at 270 nm, Em. at 330 nm, Gain : X1
            No. 441A, we introduced examples of the simultaneous         10.0 - 12.8 min  Ex. at 250 nm, Em. at 370 nm, Gain : X1
            analysis of polycyclic aromatic hydrocarbons (PAHs)          12.8 - 16.0 min  Ex. at 330 nm, Em. at 430 nm, Gain : X4
            using a fluorescence detector. However, of the sixteen        16.0 - 21.0 min  Ex. at 270 nm, Em. at 390 nm, Gain : X1
                                                                         21.0 - 27.6 min  Ex. at 290 nm, Em. at 430 nm, Gain : X1
            polycyclic aromatic hydrocarbons designated as               27.6 - 30.0 min  Ex. at 370 nm, Em. at 460 nm, Gain : X16
            "priority pollutants" by the U.S. Environmental              30.0 - 40.0 min  Ex. at 270 nm, Em. at 330 nm, Gain : X1
            Protection Agency (EPA), acenaphthylene alone does   Cell Temp.   : 28 °C
            not exhibit fluorescence. Therefore, a single
            fluorescence detector cannot be used for simultaneous
            analysis of all sixteen of these PAHs. However, the
            Prominence-i, which incorporates a UV detector, can be   (a)
            connected to the RF-20Axs fluorescence detector as an   3.00  mV
            optional detector, permitting simultaneous analysis of   2.75                LC-2030 UV at 254 nm
            all sixteen polycyclic aromatic hydrocarbons. Here, using   2.50
            two analytical methods, one with the wavelength      2.25
            switching mode and the other using simultaneous      2.00
            measurement at multiple wavelengths, we introduce an   1.75          6
            example of simultaneous analysis of the 16 PAHs.     1.50                       11
                                                                 1.25       2
            n Analysis of Polycyclic Aromatic Hydrocarbons       1.00     1     5        10    13  16
               Using Wavelength Switching Mode                   0.75         4    7    9    12  14 15
                                                                 0.50
            Fig. 1 (a) shows the chromatogram obtained using a UV             3     8
            detector for analysis (detection wavelength: 254 nm),   0.25
            and Table 1 shows the analytical conditions that were   0.00
            used. Although good separation was obtained using    -0.25 0.0  5.0  10.0  15.0  20.0  25.0  30.0  min
            these conditions, the insufficient sensitivity obtained
            with UV absorption alone is due to the low absorption   (b)  mV (×1000)
            of ultraviolet light by the PAHs.                                           LC-2030 UV and RF-20Axs
            Fig. 1 (b) shows chromatograms obtained via          1.25
            simultaneous analysis of sixteen polycyclic aromatic              3
            hydrocarbons using the wavelength switching mode     1.00
            according to component group, accomplished by
            connecting the Prominence-i to an RF-20Axs detector.   0.75
            Table 2 shows the analytical conditions used for               1
            conducting analysis via combination of the fluorescence   0.50    4               12   15
            detector and UV detector. The non-fluorescent                   2           9      13
            acenaphthylene is detected by the UV absorption      0.25               8    10  11  14 230 nm (UV)
            detector at 230 nm, in the vicinity of the wavelength at            5 6  7              16 RF-20Axs
            which it exhibits the maximum absorption. Using these   0.00
            analytical conditions, good sensitivity and separation of   0.0  5.0  10.0  15.0  20.0  25.0  30.0  min
            the sixteen components is achieved, permitting analysis     1. Naphthalene (1.0 mg/L)     2. Acenaphthylene (2.0 mg/L)
            of each component at the optimum wavelength.           3. Acenaphthene (1.0 mg/L)     4. Fluorene (0.2 mg/L)
                                                                   5. Phenanthrene (0.1 mg/L)     6. Anthracene (0.1 mg/L)
                                                                   7. Fluoranthene (0.2 mg/L)     8. Pyrene (0.1 mg/L)
                         Table 1  Analytical Conditions            9. Benzo[a]anthracene (0.1 mg/L)   10. Chrysene (0.1 mg/L)
                                                                 11. Benzo[b]fluoranthene (0.2 mg/L)  12. Benzo[k]fluoranthene (0.1 mg/L)
              Column   : RESTEK Pinacle Ⅱ PAH (250 mm L. × 4.6 mm I.D., 4 μm)  13. Benzo[a]pyrene (0.1 mg/L)   14. Dibenzo[a, h]anthracene (0.2 mg/L)
              Mobile Phase  : A: Water                           15. Benzo[g, h, i]perylene (0.2 mg/L)  16. Indeno[1, 2, 3-cd]pyrene (0.1 mg/L)
                         B: Acetonitrile
              Column Temp. : 40 °C
              Time Program  : B Conc. 60 % (0 - 5 min) → 100 % (30 - 35 min)  Fig. 1  (a) UV Chromatogram of Standard Mixture of 16 PAHs
                         → 60 % (35 - 40 min)                         (b) Chromatogram of Standard Mixture of 16 PAHs
              Flowrate   : 1.5 mL/min                                   Analyzed by the RF-20Axs and UV Detector
              Injection   : 5 μL                               Note: The peak intensity of the chromatogram of Fig. 1 (b) is
              Detector   : UV at 254 nm                             displayed as 10 times that of the actual chromatogram.
