Page 14 - 6_TOC in daily practice
P. 14

SCA-130-606



            The integrated dilution function enables TOC        when  switching  sample  streams.  The
            analyses up to 20,000 mg/L as well as               measuring parameter can be selected
            automatic    sample    dilution  when     the       individually  for  each  sample  stream.  In
            measuring range is exceeded. The measured           addition, the user can freely select the
            value is transmitted directly to a control room     sequence by which the sample streams are
            that initiates suitable measures when a             to be measured.
            threshold value is exceeded. The analyser
            can also take direct action. For example, a         ■ Conclusion
            slider valve can be closed automatically to         The automatic dilution function,  the self-
            prevent the discharge of contaminated water         calibration check and the optimized sampling
            into watercourses or stagnant water bodies.         process allow virtually independent operation
                                                                of the instrument at the airport.  Numerous
            ■ Multiple sample streams in one                    alarm and status signals simplify detection of
            instrument                                          exceeded threshold  values or indicate
            An airport may have several separate                maintenance requirements. In addition to the
            wastewater  collection  systems.  In  this  case,   conventional       possibilities,    Modbus
            multiple  sample  streams  must  be  measured       communication is available. An optional web
            using one instrument, requiring the use of a        browser enables access to the instrument
            multi-stream sampler. The sample is passed          from any networked computer. This makes
            through  a  strainer  and  reaches  the  sample     the TOC-4200 the ideal instrument for
            chamber where it is homogenised using a             continuous TOC determination of wastewater
            rotating knife before being transferred to the      streams at airports,  especially during the
            instrument  for  further  analysis.  In  this  way,   winter period.
            even samples containing large amounts of
            particulate  matter can be measured without         ■ Recommended Analyser / Configuration
            any problems. After sampling, the chamber           TOC-4200
            and strainer are cleaned with rinsing water.        Stand set
            The rinsing water prevents carry-over effects       Multi-stream unit (for suspended samples)

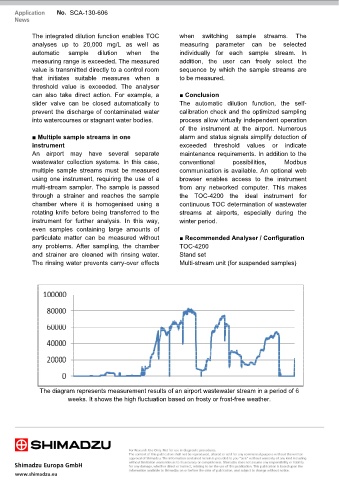

               The diagram represents measurement results of an airport wastewater stream in a period of 6
                         weeks. It shows the high fluctuation based on frosty or frost-free weather.
