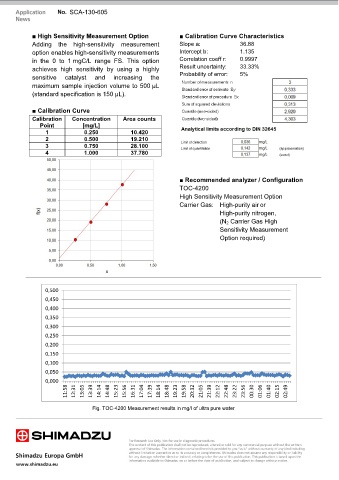

            ■ High Sensitivity Measurement Option               ■ Calibration Curve Characteristics
            Adding the high-sensitivity measurement             Slope a:             36.88
            option enables high-sensitivity measurements        Intercept b:         1.135
            in the 0 to 1 mgC/L range FS. This option           Correlation coeff r:   0.9997
            achieves high sensitivity by using a highly         Result uncertainty:   33.33%
            sensitive   catalyst  and    increasing   the       Probability of error:   5%
            maximum sample injection volume to 500 µL
            (standard specification is 150 µL).

            ■ Calibration Curve
            Calibration   Concentration     Area counts
               Point          [mg/L]
                 1             0.250           10.420
                 2             0.500           19.210
                 3             0.750           28.100
                 4             1.000           37.780


                                                                ■ Recommended analyzer / Configuration
                                                                TOC-4200
                                                                High Sensitivity Measurement Option
                                                                Carrier Gas:  High-purity air or
                                                                              High-purity nitrogen,
                                                                              (N 2 Carrier Gas High
                                                                              Sensitivity Measurement
                                                                              Option required)






                 0,500
                 0,450
                 0,400
                 0,350
                 0,300
                 0,250
                 0,200
                 0,150
                 0,100
                 0,050
                 0,000
                        11:58  12:31  13:05  13:39  14:14  14:48  15:23  15:56  16:31  17:04  17:39  18:14  18:48  19:23  19:58  20:32  21:05  21:39  22:12  22:48  23:22  23:56  00:30  01:06  01:40  02:15  02:49


                                 Fig. TOC-4200 Measurement results in mg/l of ultra pure water
