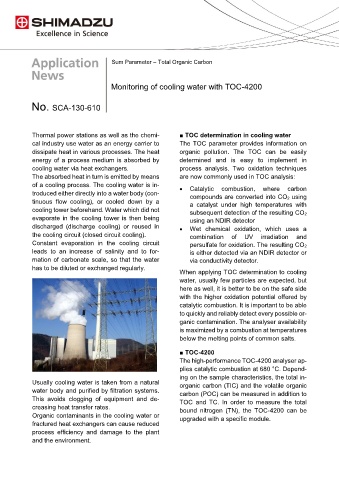

Sum Parameter – Total Organic Carbon



                                        Monitoring of cooling water with TOC-4200

            No.  SCA-130-610



            Thermal power stations as well as the chemi-        ■ TOC determination in cooling water
            cal industry use water as an energy carrier to      The TOC parameter provides information on
            dissipate heat in various processes. The heat       organic pollution.  The  TOC  can be easily
            energy of a process medium is absorbed by           determined and is  easy  to implement  in
            cooling water via heat exchangers.                  process analysis.  Two oxidation  techniques
            The absorbed heat in turn is emitted by means       are now commonly used in TOC analysis:
            of a cooling process. The cooling water is in-      •  Catalytic combustion, where  carbon
            troduced either directly into a water body (con-        compounds are converted into CO 2 using
            tinuous  flow cooling), or  cooled down  by a           a  catalyst under high  temperatures with
            cooling tower beforehand. Water which did not           subsequent detection of the resulting CO2
            evaporate in the cooling tower is then being            using an NDIR detector
            discharged (discharge cooling) or  reused in        •  Wet chemical oxidation, which  uses a
            the cooling circuit (closed circuit cooling).           combination of  UV irradiation  and
            Constant evaporation in  the cooling  circuit           persulfate for oxidation. The resulting CO2
            leads  to an increase  of salinity and to  for-         is either detected via an NDIR detector or
            mation of carbonate scale, so that the water            via conductivity detector.
            has to be diluted or exchanged regularly.
                                                                When applying TOC determination to cooling
                                                                water, usually few particles are expected, but
                                                                here as well, it is better to be on the safe side
                                                                with the higher oxidation potential offered by
                                                                catalytic combustion. It is important to be able
                                                                to quickly and reliably detect every possible or-
                                                                ganic contamination. The analyser availability
                                                                is maximized by a combustion at temperatures
                                                                below the melting points of common salts.

                                                                ■ TOC-4200
                                                                The high-performance TOC-4200 analyser ap-
                                                                plies catalytic combustion at 680 °C. Depend-
                                                                ing on the sample characteristics, the total in-
            Usually cooling water is taken from a natural       organic carbon (TIC) and the volatile organic
            water body and purified by filtration systems.      carbon (POC) can be measured in addition to
            This avoids  clogging of equipment and de-          TOC  and  TC.  In  order to  measure the total
            creasing heat transfer rates.                       bound  nitrogen (TN), the  TOC-4200 can be
            Organic contaminants in the cooling water or        upgraded with a specific module.
            fractured heat exchangers can cause reduced
            process efficiency and  damage to  the plant
            and the environment.
