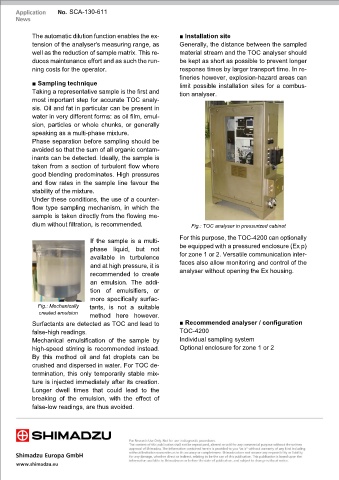

            The automatic dilution function enables the ex-     ■ Installation site
            tension of the analyser's measuring range, as       Generally, the distance between the sampled
            well as the reduction of sample matrix. This re-    material stream and the TOC analyser should
            duces maintenance effort and as such the run-       be kept as short as possible to prevent longer
            ning costs for the operator.                        response times by larger transport time. In re-
                                                                fineries however, explosion-hazard areas can
            ■ Sampling technique                                limit possible installation sites for a combus-
            Taking a representative sample is the first and     tion analyser.
            most important step for accurate TOC analy-
            sis. Oil and fat in particular can be present in
            water in very different forms: as oil film, emul-
            sion,  particles  or  whole chunks,  or generally
            speaking as a multi-phase mixture.
            Phase separation before sampling should be
            avoided so that the sum of all organic contam-
            inants can be detected. Ideally, the sample is
            taken from a section of turbulent flow where
            good blending predominates. High pressures
            and flow  rates  in the  sample  line  favour  the
            stability of the mixture.
            Under these conditions, the use of a counter-
            flow type sampling mechanism, in which the
            sample is taken directly from the flowing me-
            dium without filtration, is recommended.                Fig.: TOC analyser in pressurized cabinet


                                 If the sample is a multi-      For this purpose, the TOC-4200 can optionally
                                 phase liquid,  but not         be equipped with a pressured enclosure (Ex p)
                                 available in  turbulence       for zone 1 or 2. Versatile communication inter-
                                 and at high pressure, it is    faces also allow monitoring and control of the
                                 recommended to  create         analyser without opening the Ex housing.
                                 an emulsion.  The addi-
                                 tion of emulsifiers, or
                                 more specifically  surfac-
              Fig.: Mechanically         tants, is not  a suitable
               created emulsion   method  here however.
            Surfactants are detected as TOC and lead to         ■ Recommended analyser / configuration

            false-high readings.                                TOC-4200
            Mechanical emulsification  of the  sample  by       Individual sampling system
            high-speed stirring  is recommended instead.        Optional enclosure for zone 1 or 2
            By this method  oil  and fat  droplets can  be
            crushed and dispersed in water. For TOC de-
            termination, this  only temporarily  stable mix-
            ture is injected immediately after its creation.
            Longer dwell times  that  could lead  to  the
            breaking  of  the  emulsion,  with  the effect of
            false-low readings, are thus avoided.
