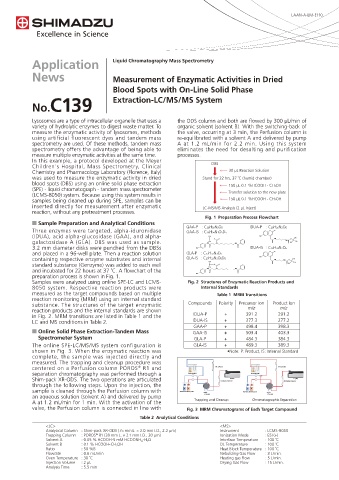

LAAN-A-LM-E110








            Application                  Liquid Chromatography Mass Spectrometry

            News                         Measurement of Enzymatic Activities in Dried

                                         Blood Spots with On-Line Solid Phase
            No.C139                      Extraction-LC/MS/MS System



            Lysosomes are a type of intracellular organelle that uses a   the ODS column and both are flowed by 300 μL/min of
            variety of hydrolytic enzymes to digest waste matter. To   organic solvent (solvent B). With the switching-back of
            measure the enzymatic activity of lysosomes, methods   the valve, occurring at 3 min, the Perfusion column is
            using artificial fluorescent dyes and tandem mass   re-equilibrated with a solvent A and delivered by pump
            spectrometry are used. Of these methods, tandem mass   A at 1.2 mL/min for 2.2 min. Using this system
            spectrometry offers the advantage of being able to   eliminates the need for desalting and purification
            measure multiple enzymatic activities at the same time.  processes.
            In this example, a protocol developed at the Meyer             DBS
            Children's Hospital, Mass Spectrometry, Clinical
            Chemistry and Pharmacology Laboratory (Florence, Italy)              30 μL Reaction Solution
            was used to measure the enzymatic activity in dried         Stand for 22 hrs, 37 ˚C (humid chamber)
            blood spots (DBS) using an online solid phase extraction             150 μL 0.1 %HCOOH - CH3OH
            (SPE) - liquid chromatograph - tandem mass spectrometer              Transfer solution to the new plate
            (LCMS-8050) system. Because using this system results in
            samples being cleaned up during SPE, samples can be                  150 μL 0.1 %HCOOH - CH3OH
            inserted directly for measurement after enzymatic           LC-MS/MS Analysis (2 μL Inject)
            reaction, without any pretreatment processes.
                                                                         Fig. 1  Preparation Process Flowchart
            Q Sample Preparation and Analytical Conditions
                                                                  GAA-P : C28H39N3O5     IDUA-P  : C20H26N2O6
            Three enzymes were targeted, alpha-iduronidase        GAA-IS : C28H34N3O5D5         O  O
            (IDUA), acid alpha-glucosidase (GAA), and alpha-              CH3               HO          CH3
                                                                            O  O                 NH  NH  O
            galactosidase A (GLA). DBS was used as sample.                NH CH3  N  NH         O     O H3C  CH3
            3.2 mm diameter disks were punched from the DBSs          HO  O         O    IDUA-IS : C19H24N2O6
            and placed in a 96-well plate. Then a reaction solution   GLA-P : C27H37N3O5    HO  O  O
            containing respective enzyme substrates and internal   GLA-IS : C27H32N3O5D5         NH  NH  O  CH3
                                                                          CH3                           CH3
            standard substance (Genzyme) was added to each well             O  O                O     O H3C
                                                                          CH3  N    NH
                                                                          NH
            and incubated for 22 hours at 37 ˚C. A flowchart of the
                                                                      HO  O         O
            preparation process is shown in Fig. 1.
            Samples were analyzed using online SPE-LC and LCMS-    Fig. 2  Structures of Enzymatic Reaction Products and
            8050 system. Respective reaction products were              Internal Standards
            measured as the target compounds based on multiple               Table 1  MRM Transitions
            reaction monitoring (MRM) using an internal standard
            substance. The structures of the target enzymatic      Compounds  Polarity  Precursor ion  Product ion
                                                                                                   m/z
                                                                                        m/z
            reaction products and the internal standards are shown
            in Fig. 2. MRM transitions are listed in Table 1 and the   IDUA-P   +      391.2       291.2
            LC and MS conditions in Table 2.                         IDUA-IS    +      377.3       277.2
                                                                     GAA-P      +      498.4       398.3
            Q Online Solid Phase Extraction-Tandem Mass              GAA-IS     +      503.4       403.3
              Spectrometer System                                    GLA-P      +      484.3       384.3
            The online SPE-LC/MS/MS system configuration is          GLA-IS     +      489.3       389.3
            shown in Fig. 3. When the enzymatic reaction was                     •Note: P: Product, IS: Internal Standard
            complete, the sample was injected directly and
            measured. The trapping and cleanup procedure was
            centered on a Perfusion column POROSš R1 and                     SPE column            SPE column
            separation chromatography was performed through a      Autosampler           Autosampler
            Shim-pack XR-ODS. The two operations are articulated              Analytical column LC/MS  Analytical column LC/MS
            through the following steps. Upon the injection, the
                                                                  A  B                  A  B
            sample is cleaned through the Perfusion column with   Solvent delivery unit  waist  Solvent delivery unit  waist
                                                                         CTO-RVL               CTO-RVL
            an aqueous solution (solvent A) and delivered by pump    Trapping and Cleanup  Chromatographic Separation
            A at 1.2 mL/min for 1 min. With the activation of the
            valve, the Perfusion column is connected in line with   Fig. 3  MRM Chromatograms of Each Target Compound
                                                  Table 2  Analytical Conditions
                 <LC>                                                         <MS>
                 Analytical Column  : Shim-pack XR-ODS (75 mm L  × 2.0 mm I.D., 2.2 μm)  Instrument  : LCMS-8050
                 Trapping Column   : POROSš R1 (30 mm L  × 2.1 mm I.D., 20 μm)  Ionization Mode   : ESI (+)
                 Solvent A    : 0.05 % HCOOH-5 mM HCOONH 4 -H 2 O             Interface Temperature   : 100 ˚C
                 Solvent B    : 0.1 % HCOOH-CH 3 OH                           DL Temperature   : 100 ˚C
                 Ratio        : 50 %B                                         Heat Block Temperature  : 100 ˚C
                 Flowrate     : 0.6 mL/min                                    Nebulizing Gas Flow   : 3 L/min.
                 Oven Temperature  : 30 ˚C                                    Heating gas Flow   : 5 L/min.
                 Injection Volume   : 2 μL                                    Drying Gas Flow   : 15 L/min.
                 Analysis Time   : 5.5 min
